SN# 960012 3-Axle Chassis w/52in W x20ft L VGF Feeder, 40HP Feeder Drive, 48in Reverse High Discharge Conveyor, Return Chute, 5in Thick Impact Hammers w/Top Loaded Wedge Lock Bolts 300HP Electric Motor on Impactor Independent Curtain Hangers, Hydraulic Debridging System For Impactor, Under Crusher Rock Box w/Impact Breaker 1981 Monon TL146 Box Van Trailer VIN# INNEF462NSM0508605 Front and Side Window W/ Fold Down Window Protector Side Man Door Quick Disconnect Wire Bank On The Side W/Electrical Switch Gear and Panel Controls to operate components Tandem Axle

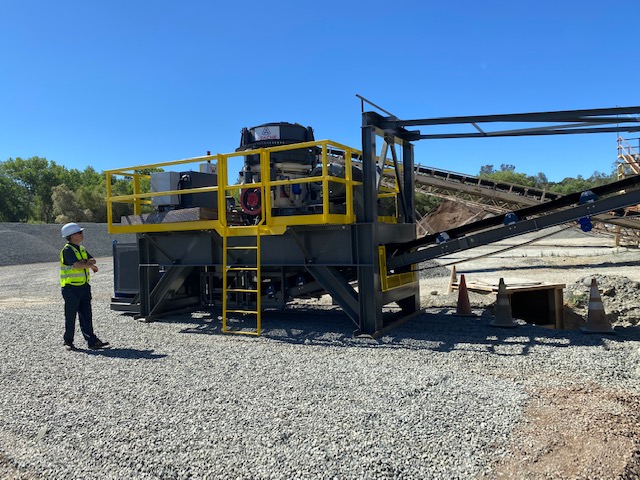

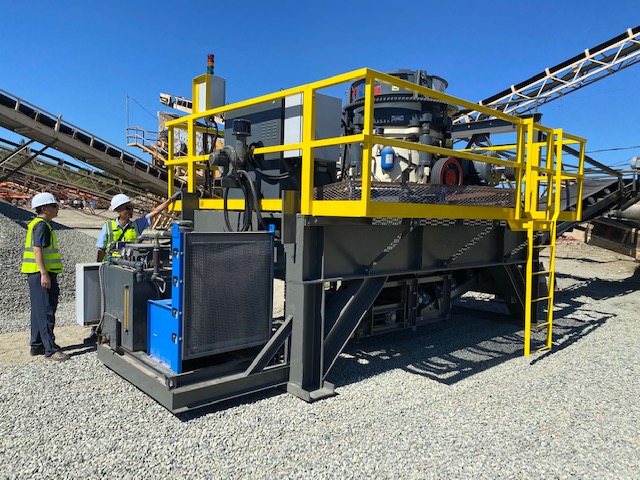

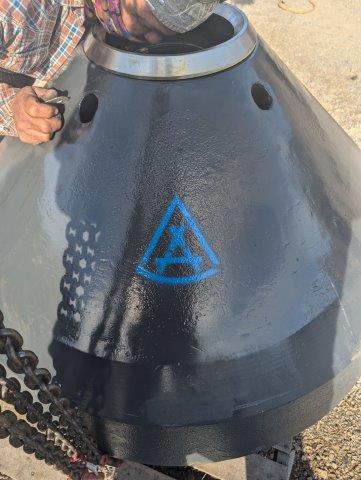

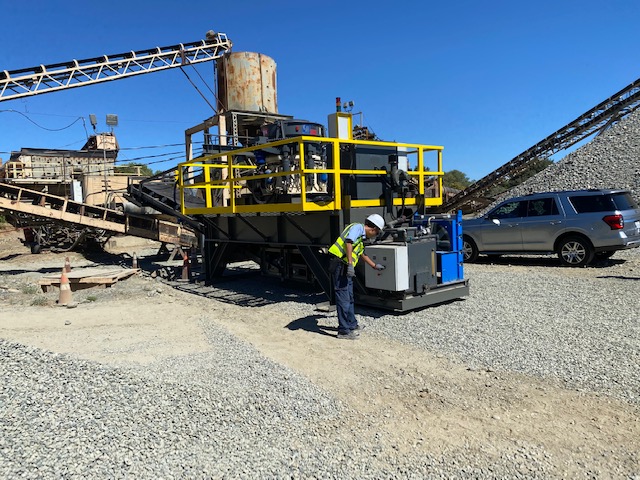

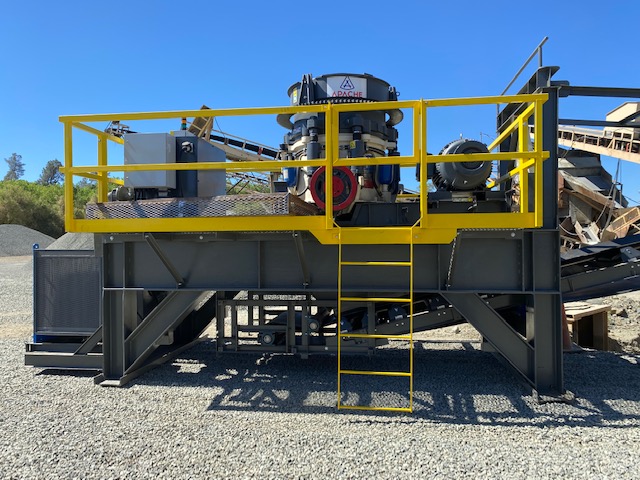

**Make:** Apache **Model**: PF1 **Year:** 2023 **Type:** High-Speed Cone Crusher **Portability:** Stationary, On Stand **Hours Used**: 1,000 since new ### Crusher Details 2023 Used Apache PF1 High-Speed Cone Crusher **Mainframe:** Cast steel with machined seat surfaces **Bowl Assembly:** Fabricated steel with replaceable bowl ring gear **Head Assembly:** * Machined steel head with bronze bushings * Fixed main shaft * Pedestal-type design for higher heat and vibration tolerance compared to roller bearings, with lower replacement costs **Adjustment**: Bowl ring gear adjust system (hydraulic powered) **Tramp System**: Dual-acting tramp relief system with replaceable nitrogen-charged bladders **Hydraulic Lock Cylinders**: Cavity clear function **Hydraulic Power Unit (HPU)**: * Oil reservoir, pump, gauges, filter * 7.5-HP electric motor * All required lines & fittings **Lubrication System Unit (LSU):** * Oil reservoir, pump, filter * 10-HP electric motor * Radiator and fan cooling system (3-HP electric motor) * All required piping & connections **Integrated Safety Switches:** Oil flow and temperature switches to shut down the cone in case of overheating or oil pressure loss **Man-In-The-Loop Controls**: Start/Stop/Adjust/Cavity Clear functions with push-button panel **Drive Package**: * 125-HP TEFC 1800 RPM crusher-duty electric motor * Drive & driven sheaves, bushings, and V-belts **Patented Self-Tightening Mantle & Concave**: No backing material required **Sub-Base**: Rubber isolator mounts, adjustable motor mount, and drive guard **Paint**: Primed & painted in Apache Grey & Apache Tan Machinery Enamel with red & white decals **Switchgear**: NO SWITCHGEAR **Stand:** Refurbished crusher stand with discharge conveyor. **Liners**: New standard coarse liners installed

**Make:** Aggretek **Year:** 2020 Portable Cone Chassis Quad-axle chassis with air brakes, lights, and mudflaps (4) hydraulic leveling legs Catwalks with handrails on both sides Dual access ladders 36" discharge conveyor with hydraulic fold Gas-powered hydraulic pump with reservoir and manual control manifold Suitable for: 4', 4.25', HP300, HP400, TC51, TP350, TP450, RC54, MVP280, MVP380, and other comparable-sized cone crushers **ADDITIONAL OPTION:** Inventory Number CR2761 can be mounted on this chassis. Lead time is 4-5 weeks to complete the work. **Please call for pricing if interested in this option.**

**Make** Trio Engineered Products **Model:** TP350 **Year:** 2014 **Type:** High-Speed Cone Crusher **Crusher Details**: * 2014 Trio TP350 High-Speed Cone Crusher * BARE Crusher * 350 HP crusher drive electric motor * Lube tank * Hydraulic power unit & controls (2014) **Upgrades:** * New Medium Standard Liners Installed * New Counterweight Assembly Installed

**Make**: Dynamic **Model:** C160/DN4763 **Year:** 2018 **Size**: 47'' x 63'' **Type:** Jaw Crusher **More Details**: * Bare jaw crusher, disassembled for shipment * Includes 350 HP, 1200 RPM crusher drive electric motor * Integrated motor mount **Condition Notes**: * Used jaw dies (less than 50% life remaining) ### Price Listed is for The Crusher as Described Above **Additional Refurbishment Option Available for Additional $:** * Refurbished with new jaw dies, fresh grease and required repairs, primer and paint. Lead-time quoted at time of purchase due to jaw die lead-time.

Make: Eljay Model: VSI 2100 Year: 1985 42'' Rear Discharge Belt Electric Switch Gear with Lifting Crane Portable

**Make:** Sandvik **Year:** 2010 **Portability:** Track Mounted **Type:** QH330 **Serial #:** 1884BG09081 **Order #:** SO007789 **Mass Kg**: 37,500 **Nominal Power (kW):** 328 **Engine #:** LGK13617 **Crusher Run Hours:** 5077 **Crushing Hours:** 2459 **Other Info:** Per the owner machine is good overall condition ### CALL ASI FOR MORE INFO OR TO SCHEDULE AN INSPECTION (615-494-1210)

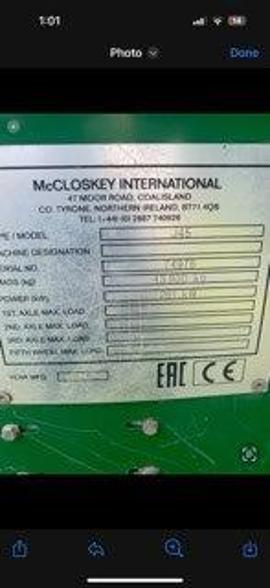

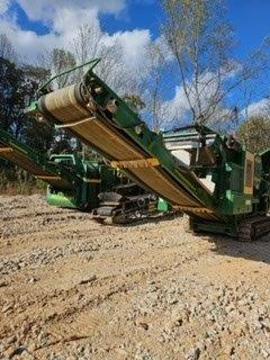

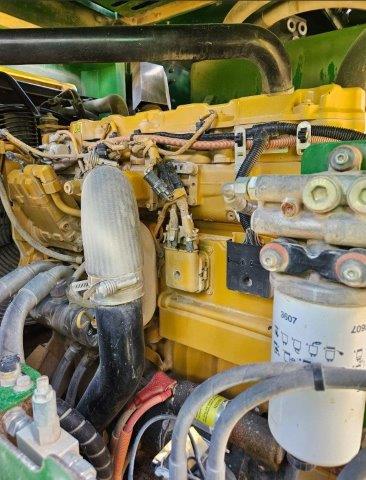

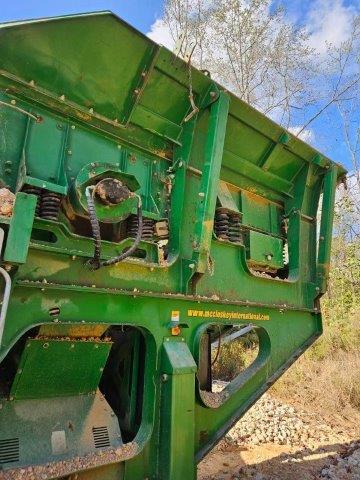

**Make:** Mccloskey **Model:** J45 (45" x 27" Jaw) **Year:** 2020 **SN#:** 74976 **Weight:** 43,900kg **Power:** 261kw **Crushing Hours:** 3800 **More Info:** * Was crushing soft red rock in NC * Track Mounted * Has a factory pre def cat engine * Per the owner- Machine recently had a couple buckets ran through it and everything ran fine, all conveyors worked * Machine can be started up and ran during an inspection ## CALL ASInc TODAY TO SCHEDULE AN INSPECTION (615-494-1210)

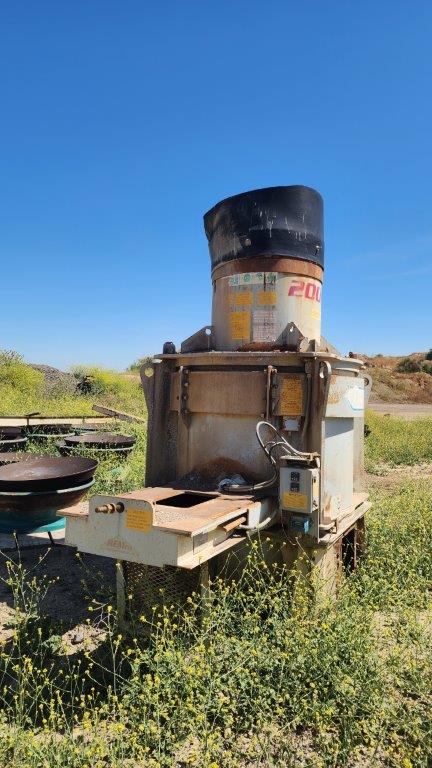

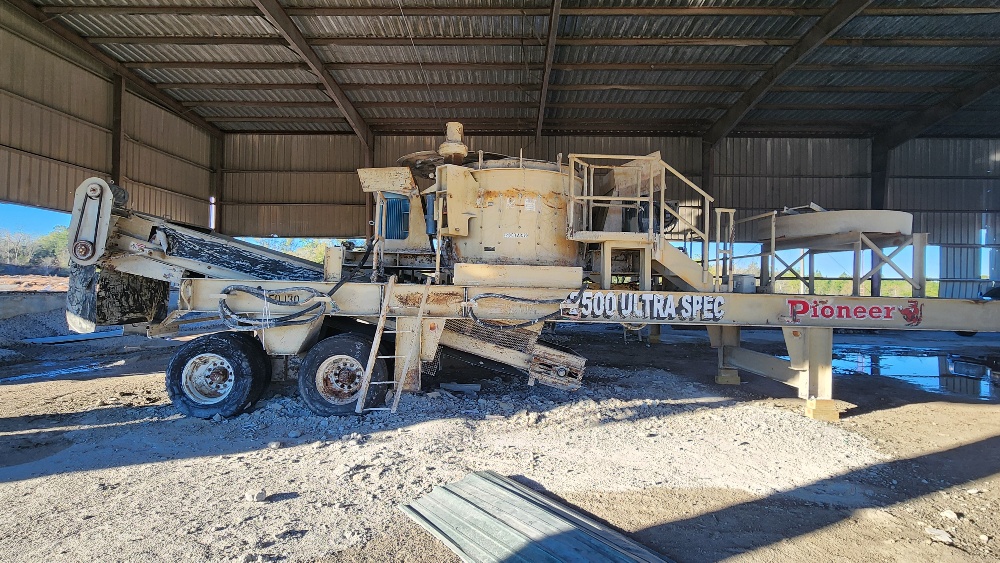

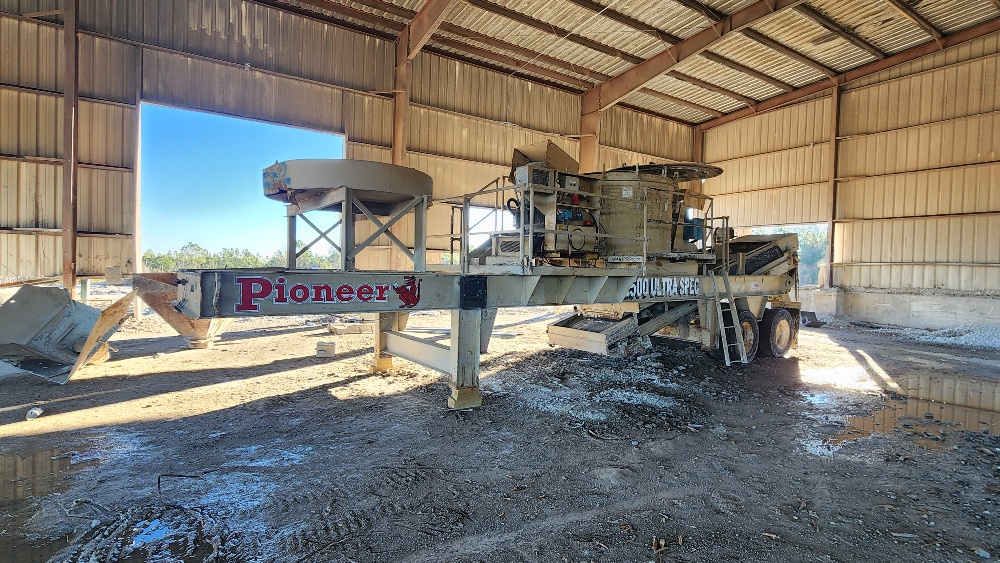

Astec - KPI - Pioneer Crusher Type of Crusher: Vertical Shaft Impact 2500 Ultra Spec Year: 2005 Job 602515 SN# 405853 200 HP Motor Portable Tandem Axle With VFD (In conex box, needs to be removed), also listed seperately (See CON2169 for full information). Max Feed Size: 3" (3 or 4 Shoe Config.) / 2" (Rotor or 5 Shoe Config.) Capacity: 150 - 300 TPH **Road Readiness Needs to be Checked!**

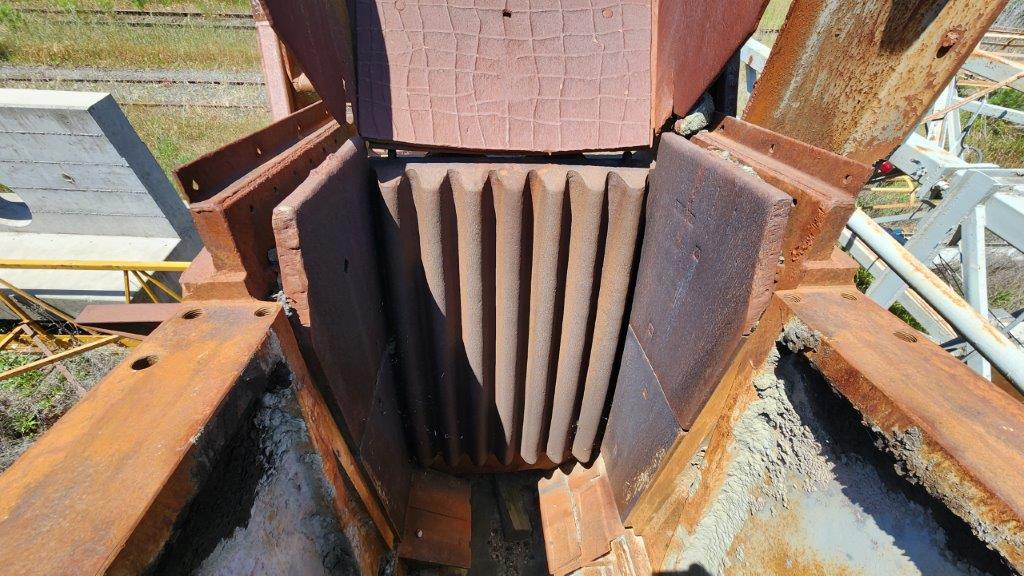

## Components sold together as a package and will NOT be sold separately. **Used Kue Ken 60in x 48in Jaw Crusher** Includes Spare Parts: (4) Toggle Pins (Metso K5222-B1) (2) Jaw (1901 10018731 AMSU) (1) Front Toggle (95 K5222-R1) (8) Lower Jaw Plate #4 (K7846) (6) Upper Movable Jaw Plate #5 (K7893-A) (16) 8ft x 20ft Rubber Mesh Screen (9) 6ft x 16ft Reinforced Rubber Mesh Screen (10) 8ft x 20ft Superior Screen (3-1/2G) (7) 6ft x 16ft Upper Mesh Screen (DD V-14) (12) Toggle Seat #88 (K5222-A1) (13) Lower Holding Bolt #37 (K5233-J) (11) Hinge Pin Cap Bolts (P/N 90B, K823-06) (66) Jaw Plate Spring Bolt #70 (1) Roller Bearing Pump (#11P) (3) Flywheel Housing (P/N 20#, K5232-HQ) (1) Roller Bearing - Flywheel Side (#11F) (12) Toggle Seat Spring #42 (K5549-EV) (5) Non-Driving Shoe (84N) (3) Pump Drive Gear & Shaft (K5223-G) (7) Pump Drive Gear #50 (K5157-F) (7) Inner Diaphragms #21 (K2516-AJ)

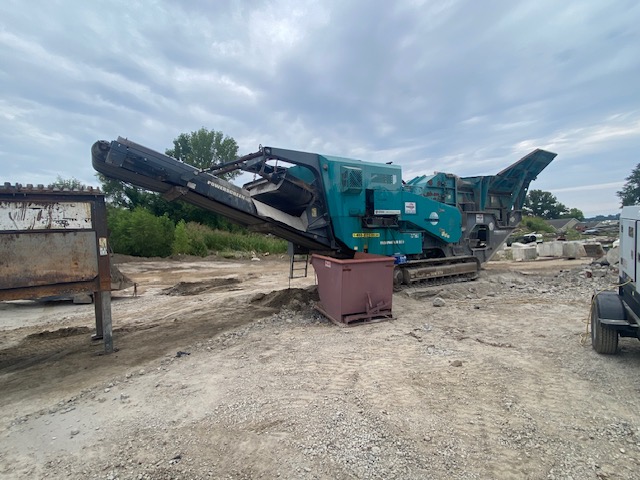

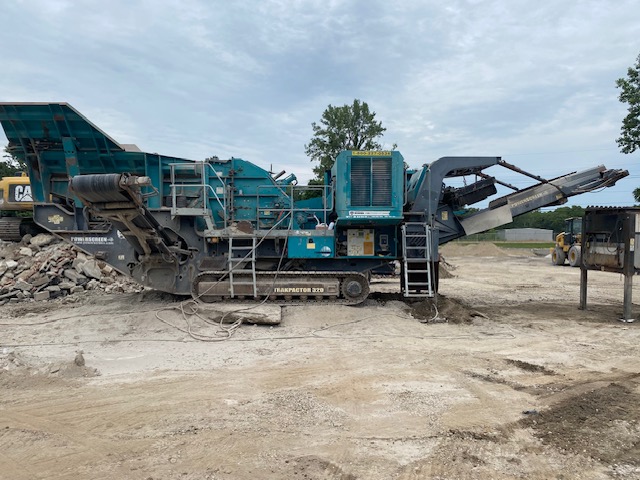

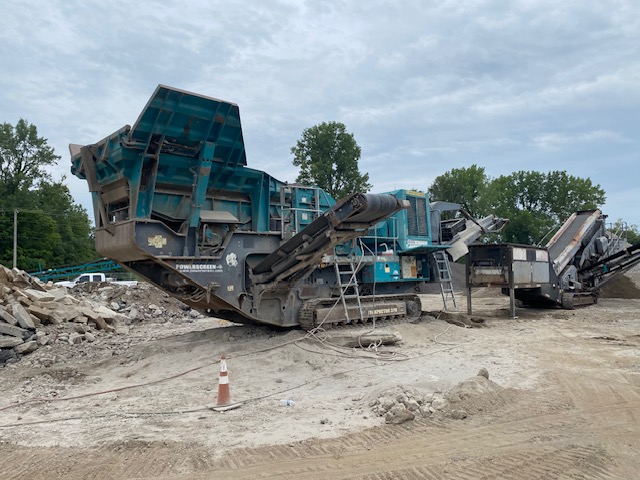

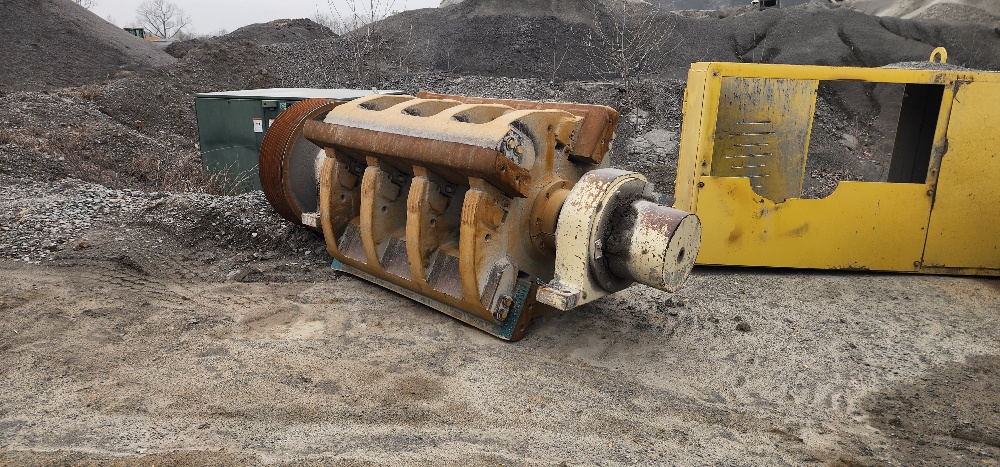

**Make:** Powerscreen **Model:** Powerscreen 320 **Year:** 2014 **Engine:** Scania DC9 350 HP diesel engine **Hours:** 6500 Hours **More Info:** * Horizontal impact crusher * 44.5” wide X 31.5” high feed opening * 4 bar rotor * 8.2 yard hopper capacity * Vibrating grizzly feeder * Under Grizzly fines conveyor * Under crusher front discharge conveyor * Self-cleaning permanent magnet **Transportation Dimensions & Weight** * Width: 8'5" Length: 48'6" Height: 11'4" / Width: 2.57m Length: 14.78m Height: 3.46m * Weight 80,600 lbs **CALL FOR PRICE**

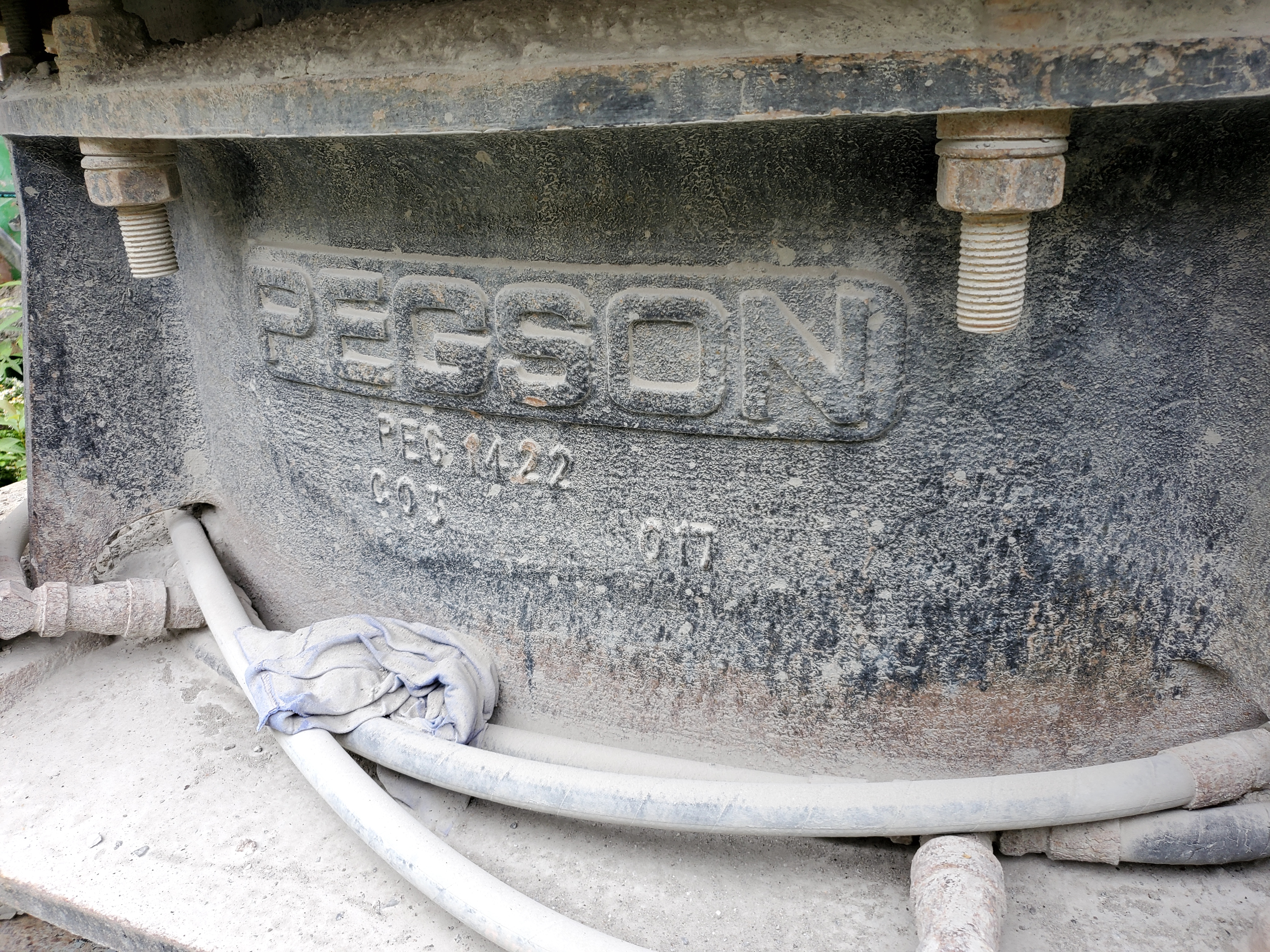

Make: Pegson Model: PEG M22 C03 017 SN: P7881002 HP: 300 Frame: 587UZ

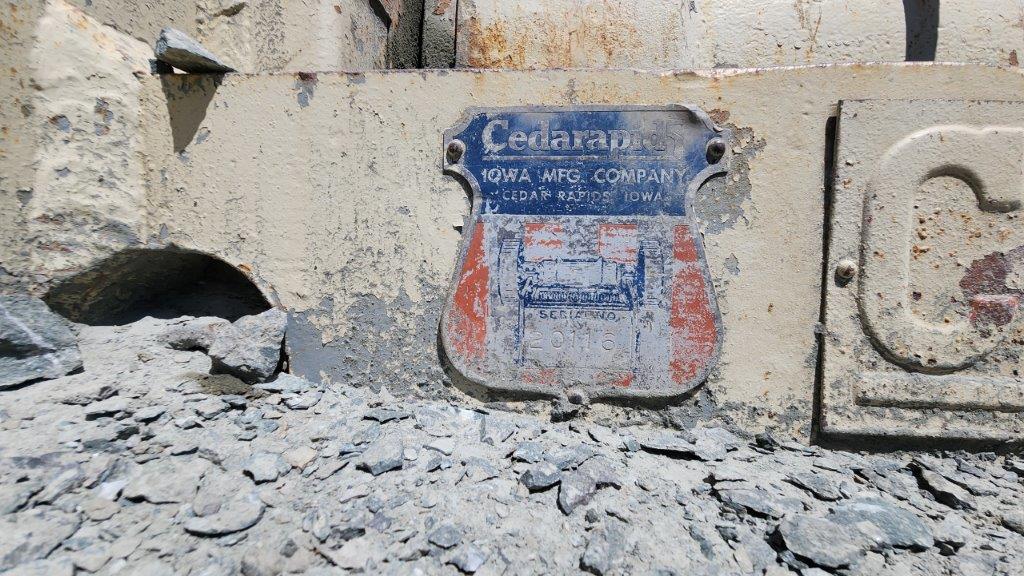

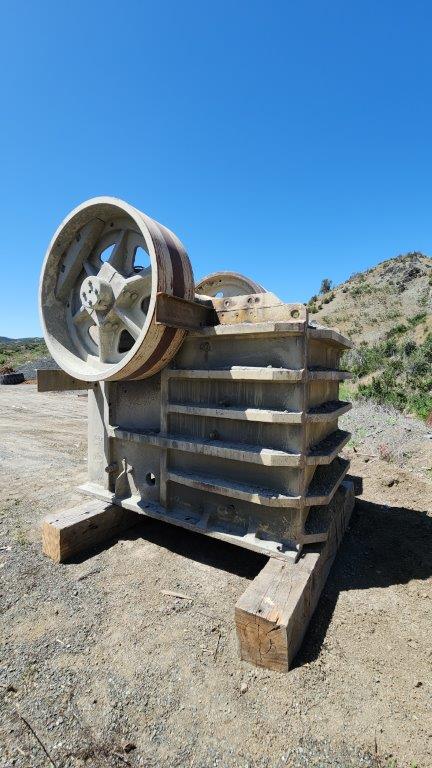

Cedarapids Bare Jaw crusher 32x42 32''x 42'' SR# 20116 Needs new set of bearings

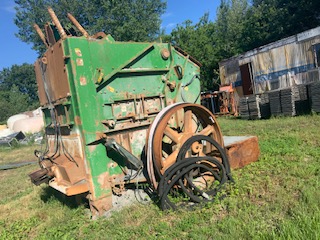

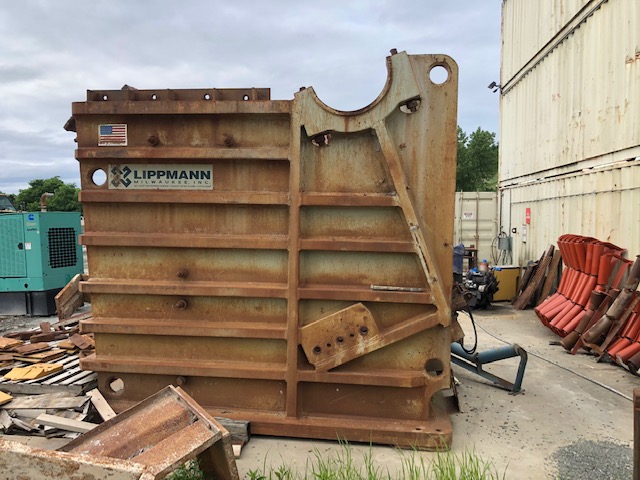

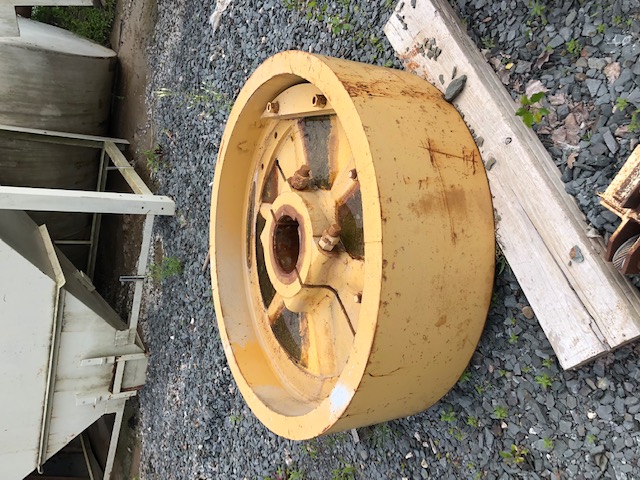

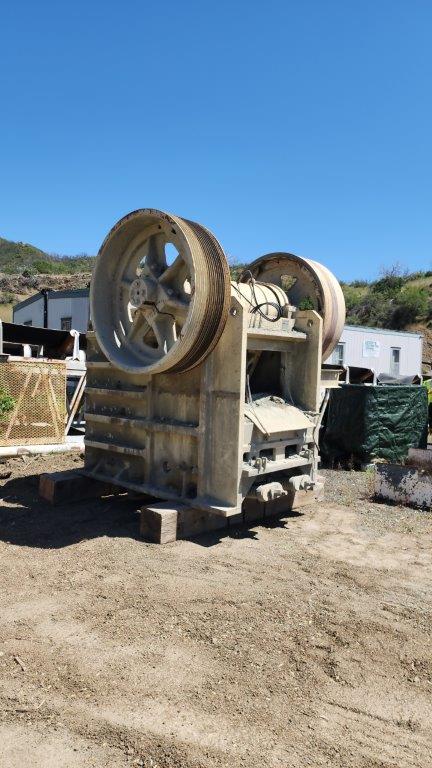

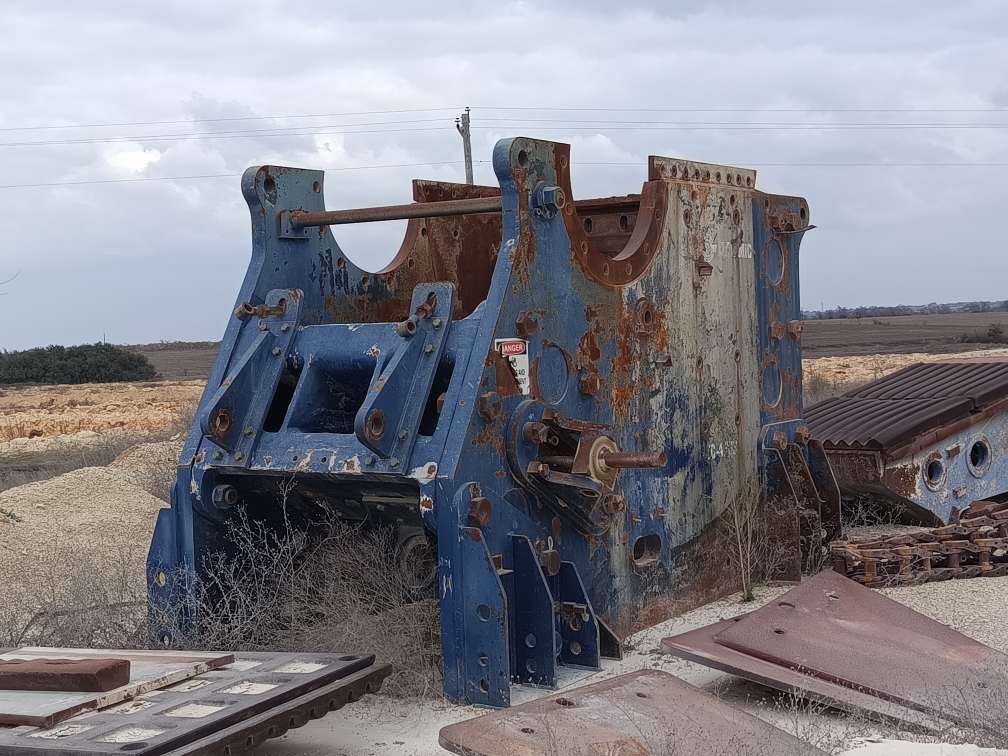

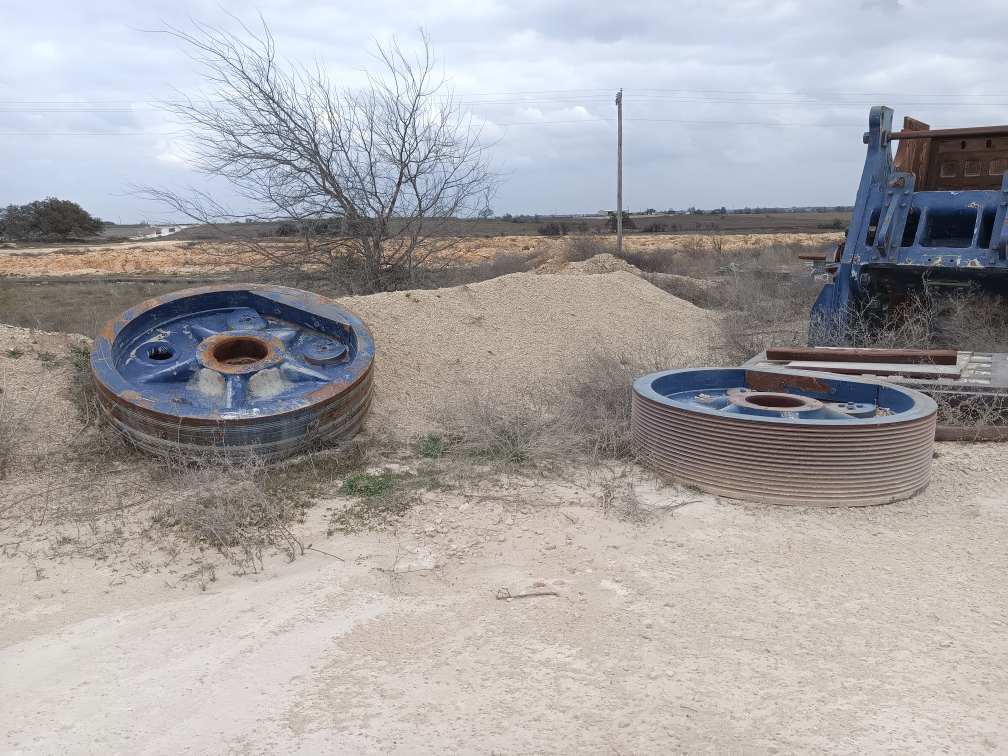

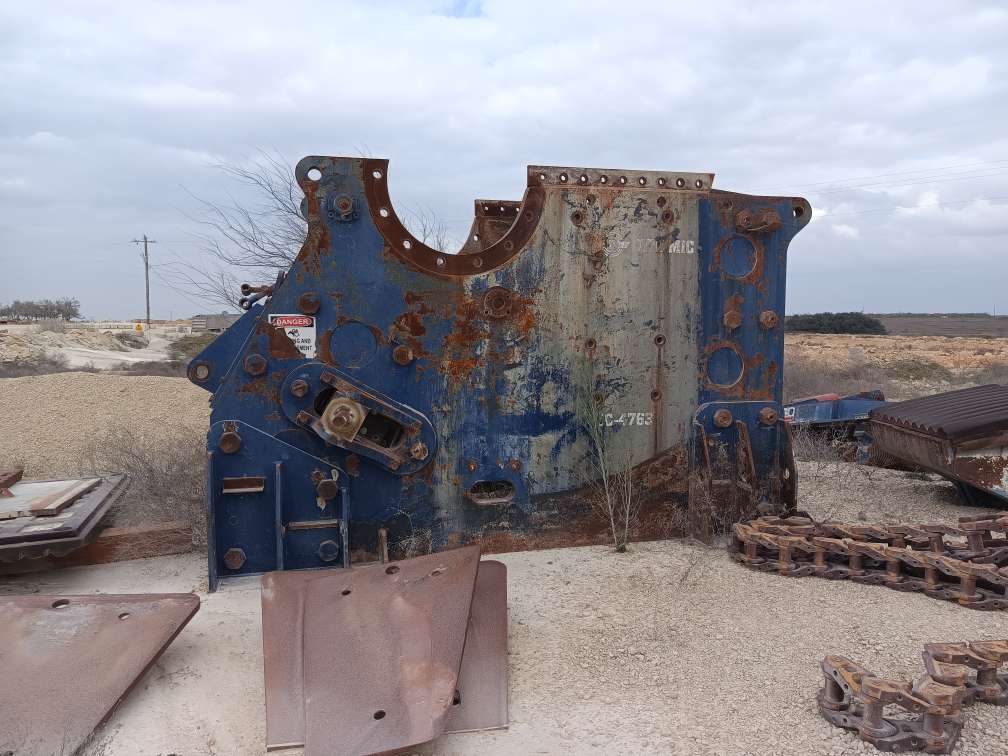

Lippman 42x48 spare parts Frame Fly wheels No motors **ALL COMPONENTS THAT ARE INCLUDED WITH THE UNIT ARE INCLUDED IN THE BELOW PHOTOS.**

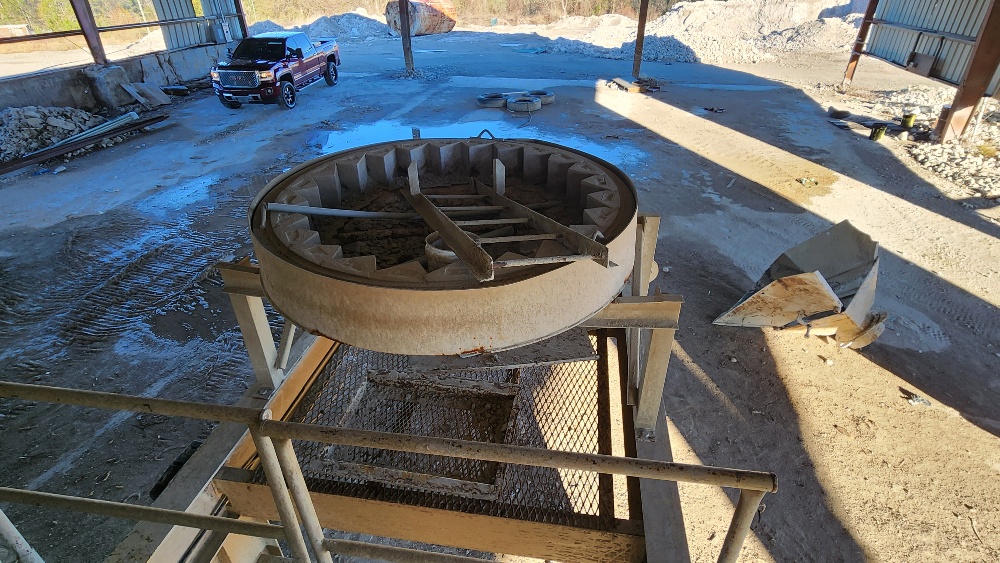

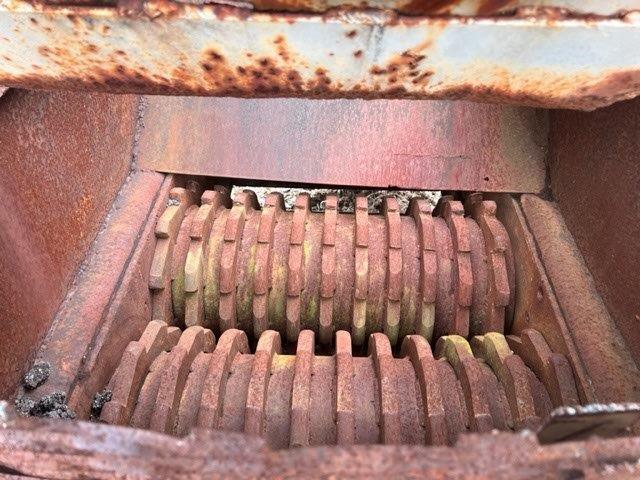

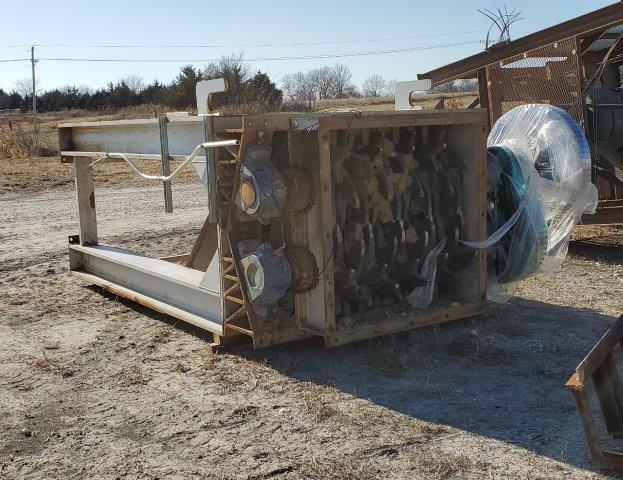

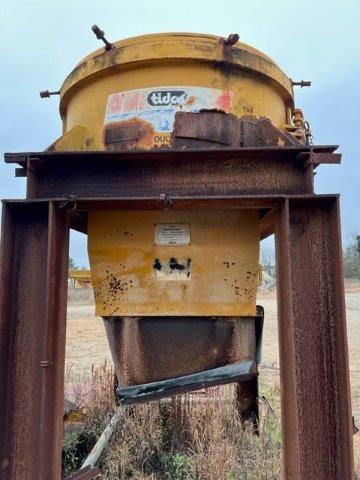

(1) Tidco VSI Crusher (1) Gentec Turbo Rap Gator (No Motor Size and Cannot Read Tag). Roll Crusher. CALL FOR PRICE

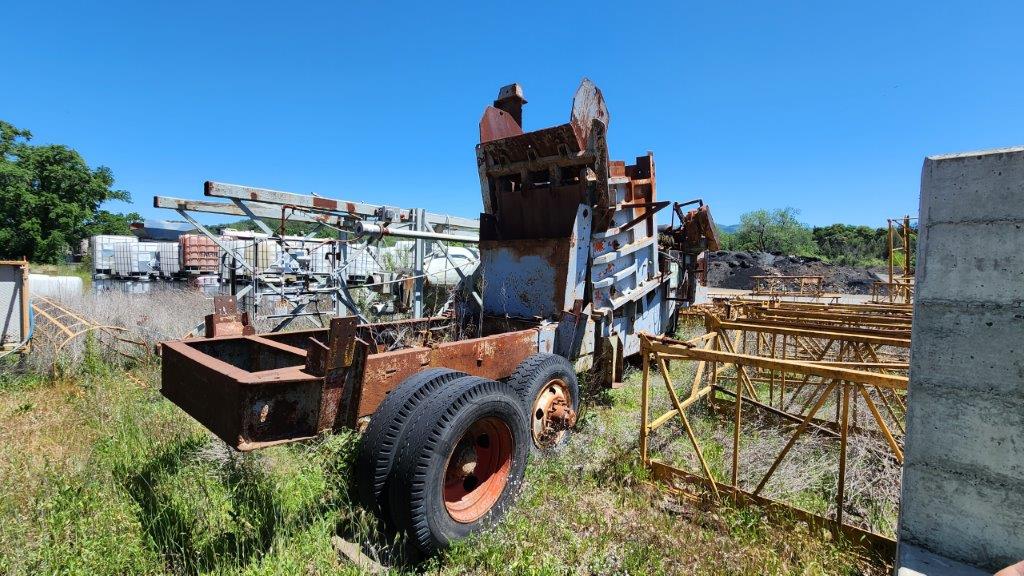

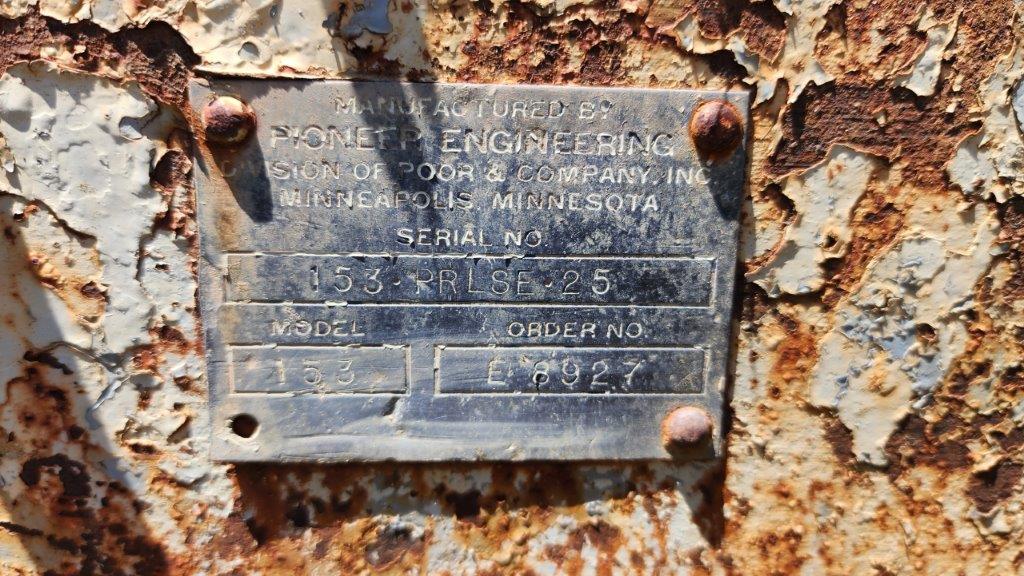

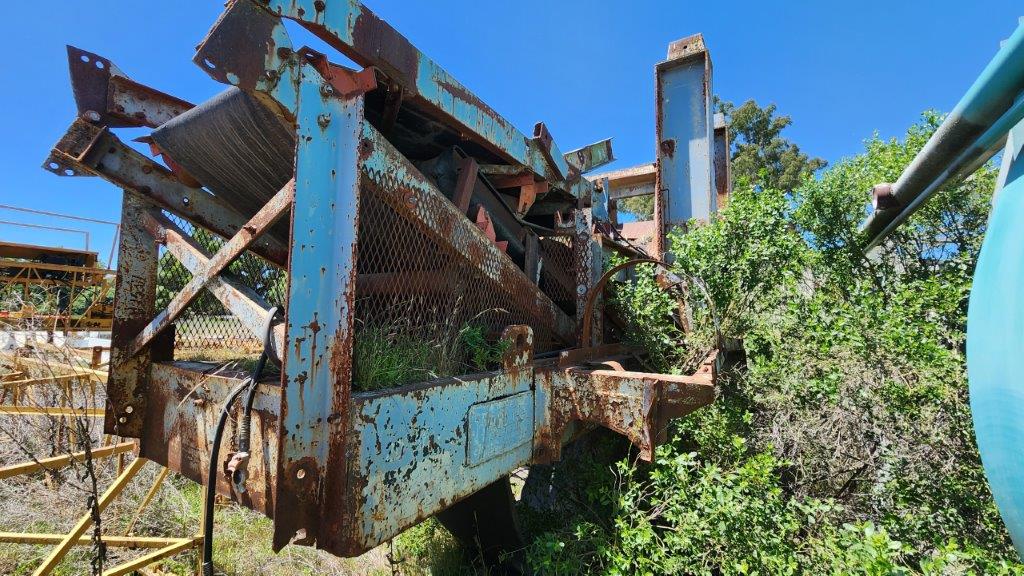

Crusher Pioneer Crusher Portable Frame frame SN# 153-PRLSE-25 Model# 153 2 Axle Cedarapids Jaw Crusher SN# 18922 Model # 3242 36" x 20' Discharge Belt NO HOPPER ASI IS UNSURE OF CURRENT WORKING CONDITION MAKE REASONABLE OFFER

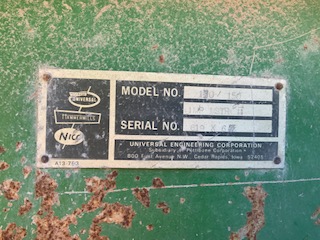

Impact Crusher UNIVERSAL 150/150 TC IMPACT MASTER Motor Not Included

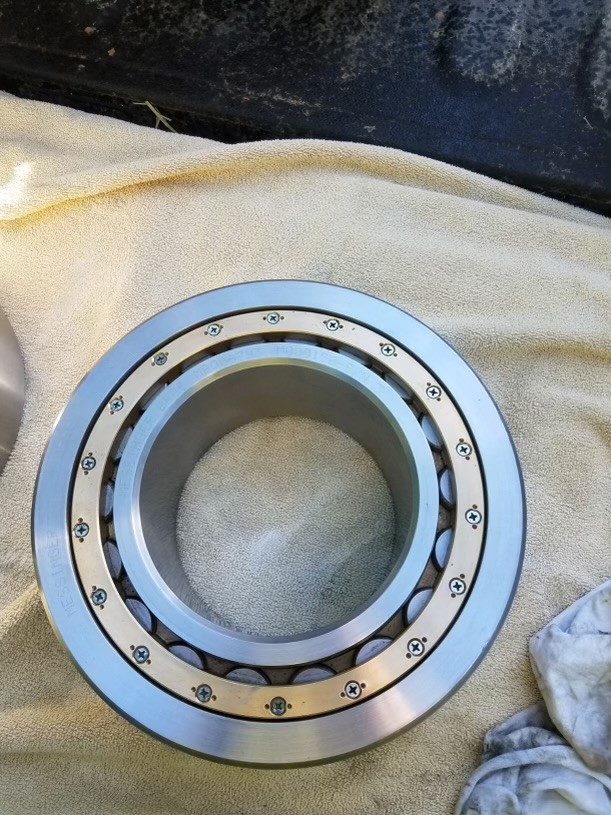

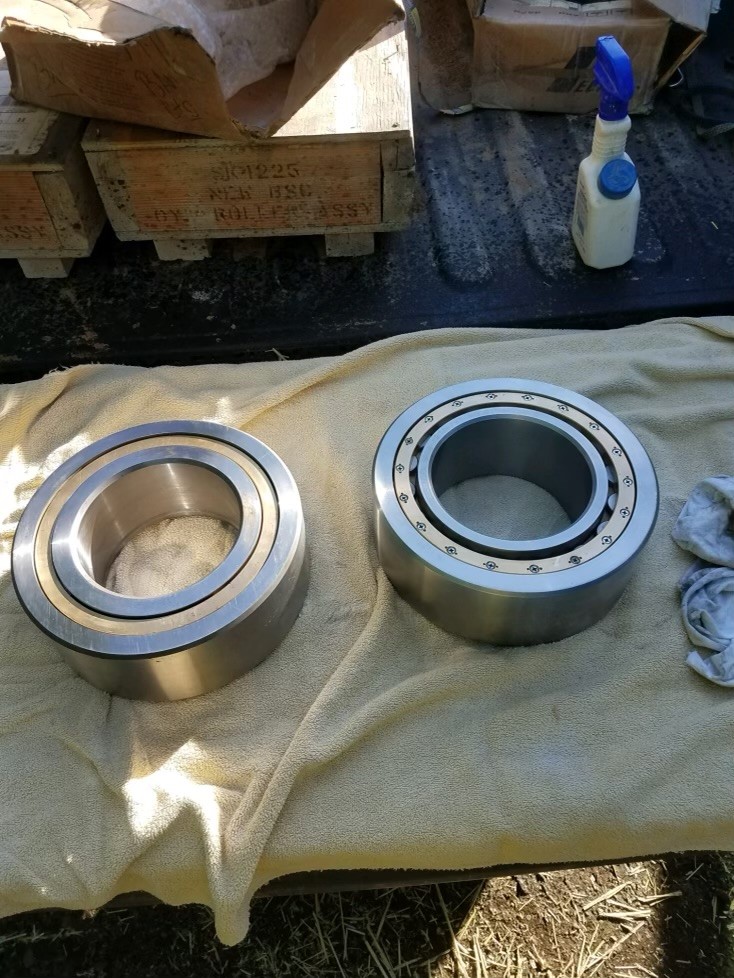

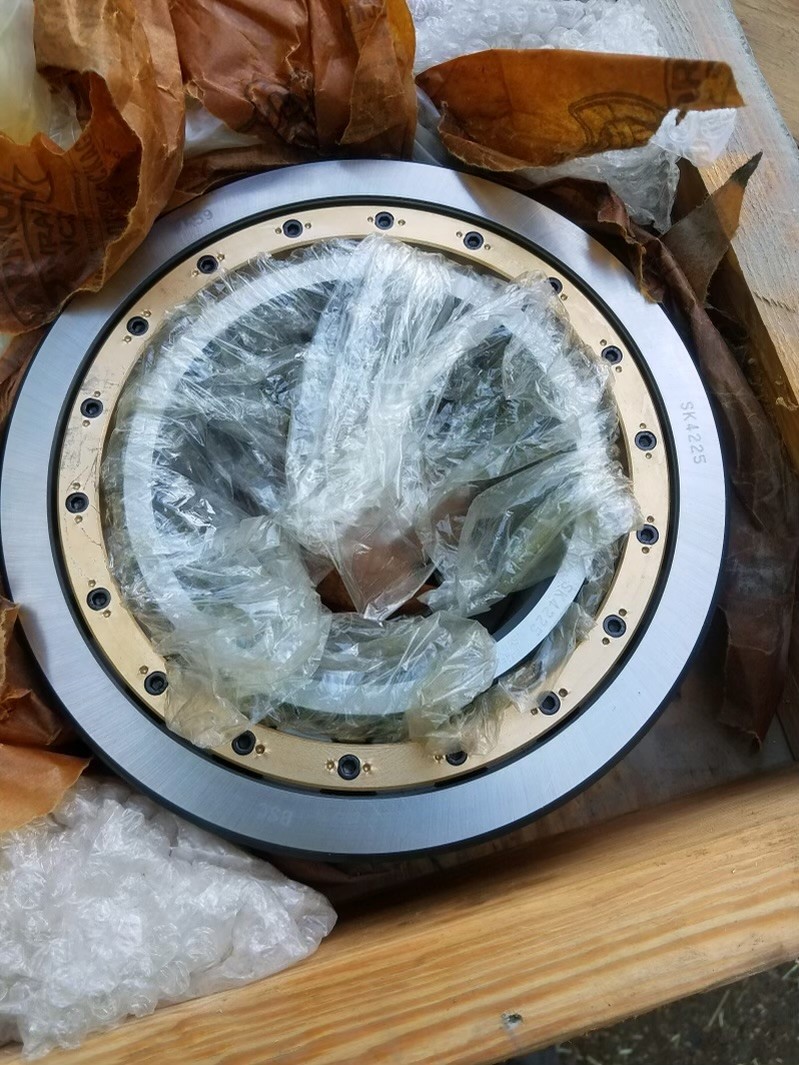

(4) Messinger Bearings Total (2)- MB006793-M000150-SN3 (2)- SK4225 New in Box never used

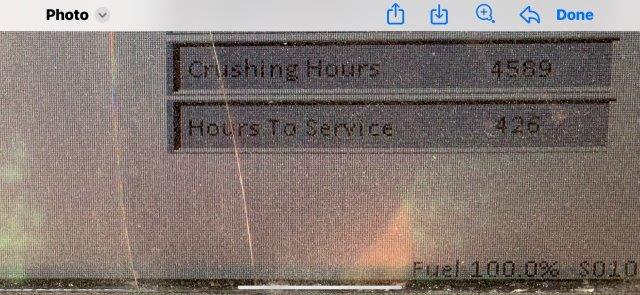

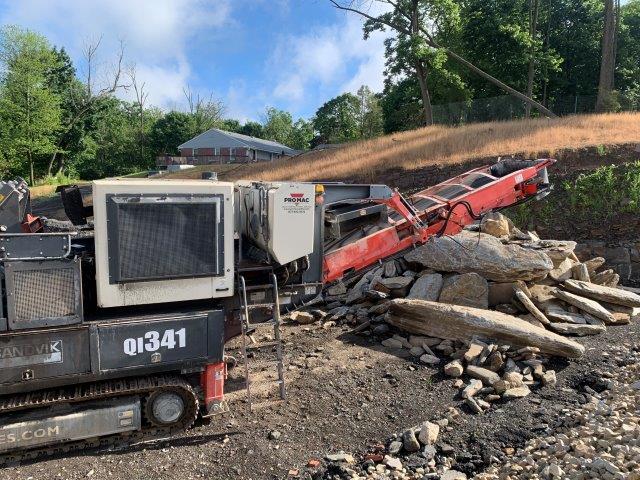

2015 Sandvik Make: Sandvik Model: QI-341 Year: 2015 Hours: 4589 Owner's Notes: Crusher isn’t used every day only intermittently. New set of blow bars in it plus a new set to go with. Rollers and head drum recently replaced and maybe 100 hrs on them etc. Crusher can go straight to work
