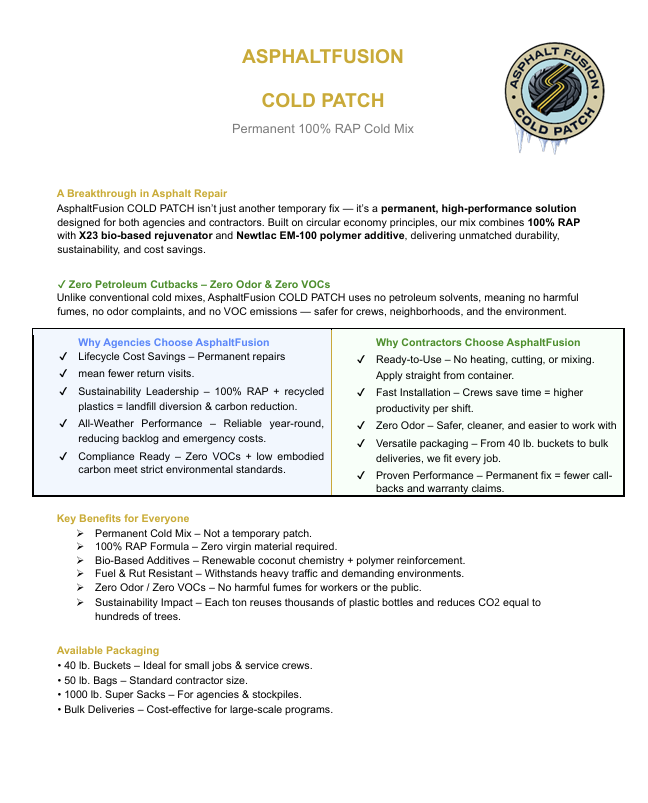

AsphaltFusion COLD PATCH
Inventory #: FC22853
A Breakthrough in Asphalt Repair
AsphaltFusion COLD PATCH isn’t just another temporary fix — it’s a permanent, high-performance solution
designed for both agencies and contractors. Built on circular economy principles, our mix combines 100% RAP
with X23 bio-based rejuvenator and Newtlac EM-100 polymer additive, delivering unmatched durability,
sustainability, and cost savings.
✔ Zero Petroleum Cutbacks – Zero Odor & Zero VOCs
Unlike conventional cold mixes, AsphaltFusion COLD PATCH uses no petroleum solvents, meaning no harmful
fumes, no odor complaints, and no VOC emissions — safer for crews, neighborhoods, and the environment.
Why Agencies Choose AsphaltFusion
✔ Lifecycle Cost Savings – Permanent repairs
✔ mean fewer return visits.
✔ Sustainability Leadership – 100% RAP + recycled plastics = landfill diversion & carbon reduction.
✔ All-Weather Performance – Reliable year-round, reducing backlog and emergency costs.
✔ Compliance Ready – Zero VOCs + low embodied carbon meet strict environmental standards.
Why Contractors Choose AsphaltFusion
✔ Ready-to-Use – No heating, cutting, or mixing. Apply straight from container.
✔ Fast Installation – Crews save time = higher productivity per shift.
✔ Zero Odor – Safer, cleaner, and easier to work with
✔ Versatile packaging – From 40 lb. buckets to bulk deliveries, we fit every job.
✔ Proven Performance – Permanent fix = fewer call backs and warranty claims.
Key Benefits for Everyone
Permanent Cold Mix – Not a temporary patch.
100% RAP Formula – Zero virgin material required.
Bio-Based Additives – Renewable coconut chemistry + polymer reinforcement.
Fuel & Rut Resistant – Withstands heavy traffic and demanding environments.
Zero Odor / Zero VOCs – No harmful fumes for workers or the public.
Sustainability Impact – Each ton reuses thousands of plastic bottles and reduces CO2 equal to
hundreds of trees.
Available Packaging
40 lb. Buckets – Ideal for small jobs & service crews.
50 lb. Bags – Standard contractor size.
1000 lb. Super Sacks – For agencies & stockpiles.
Bulk Deliveries – Cost-effective for large-scale programs.
Location:USA
Condition:USED

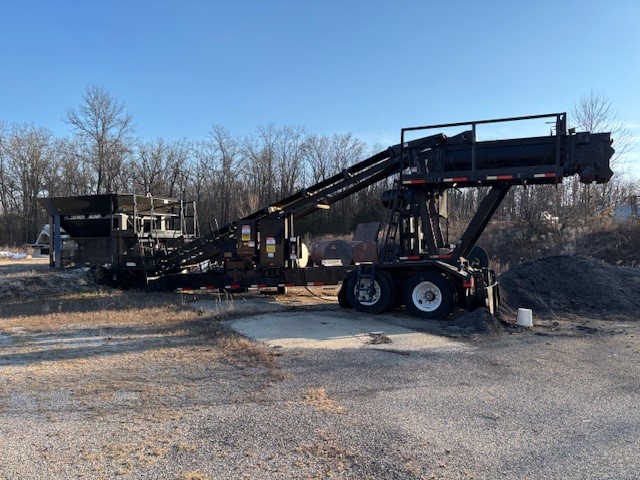

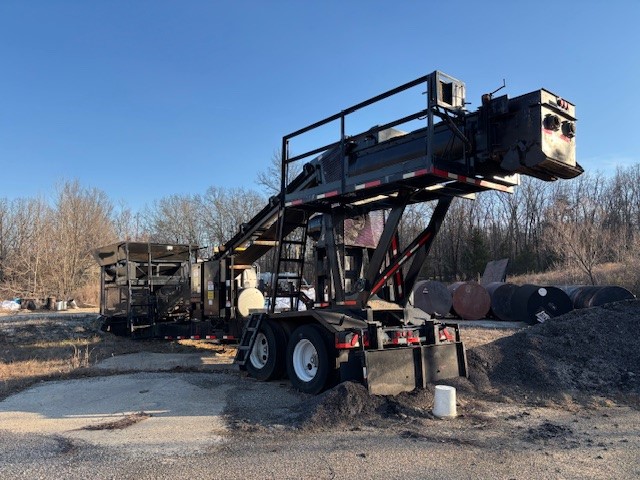

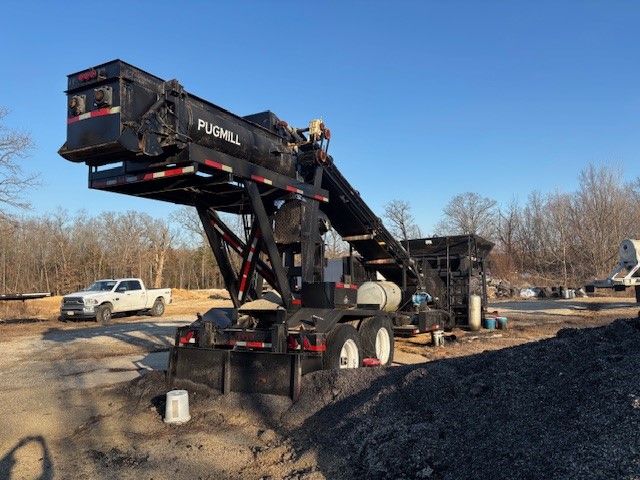

## Portable Barber Greene Cold Mix Plant
Built in 2018 and ran approx. 3,000 tons

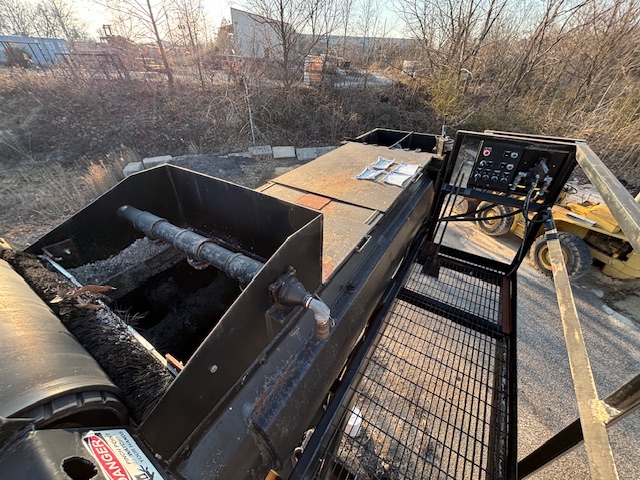

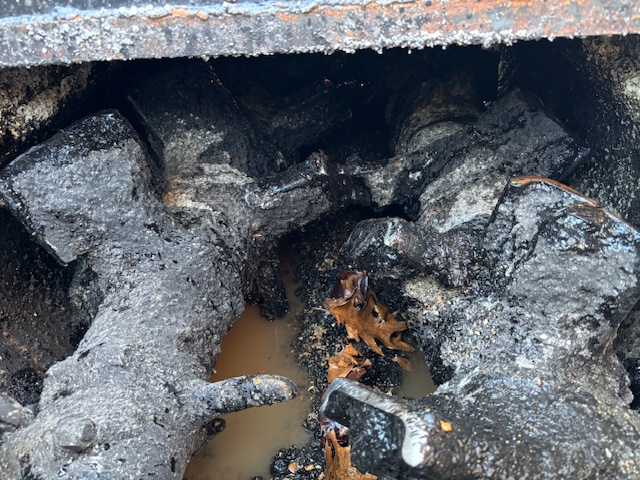

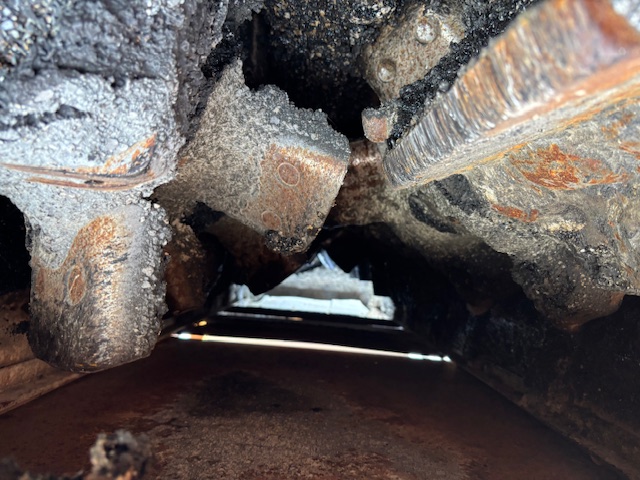

Pugmill:
Twin-shaft
15" x 10' each shaft

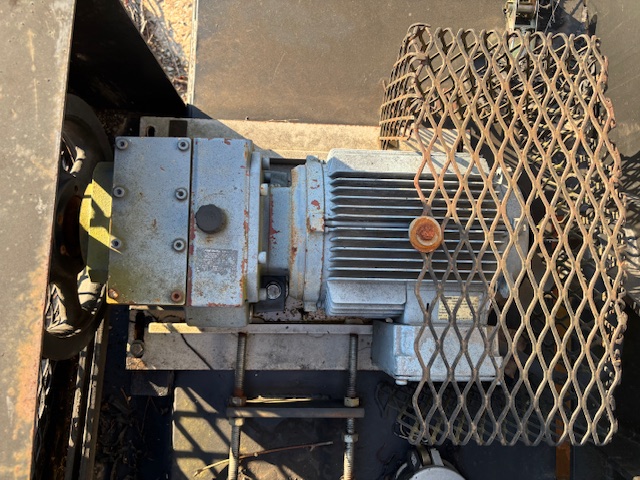

30 HP drive system
Inner Box Size: 32" x 10' x 2' deep

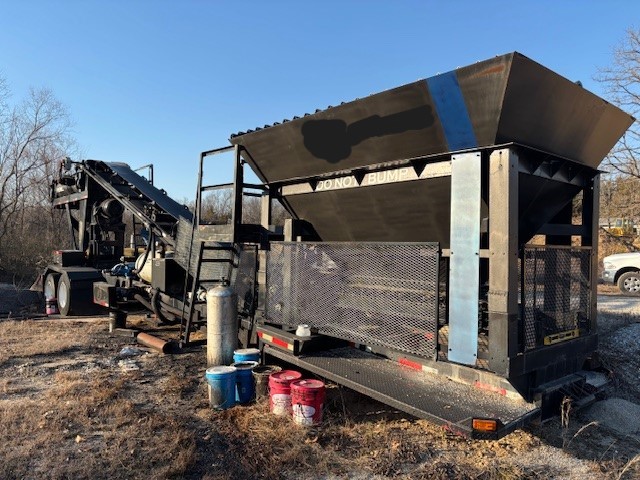

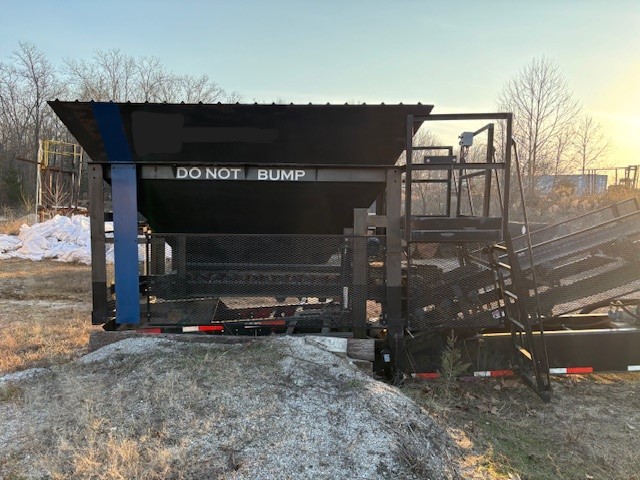

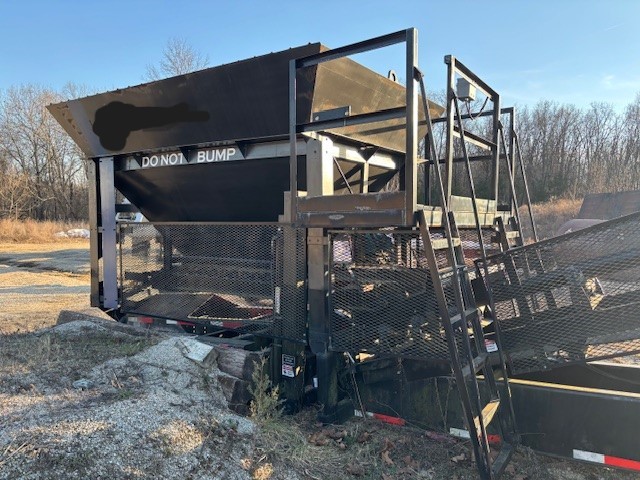

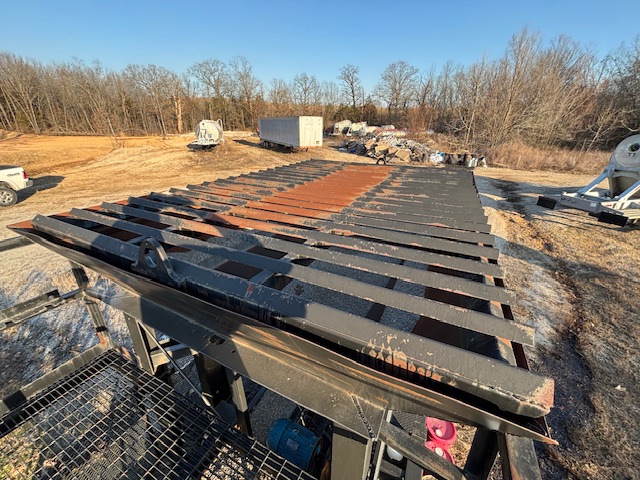

Bin & Feeder:
8' x 12' bin with Grizzly
18" x 10' feeder
5 HP motor
Conveyor:
24" x 30'
5 HP motor
Controls:
System controls with 3 main points of operation
Leveling:
Hydraulic jacks

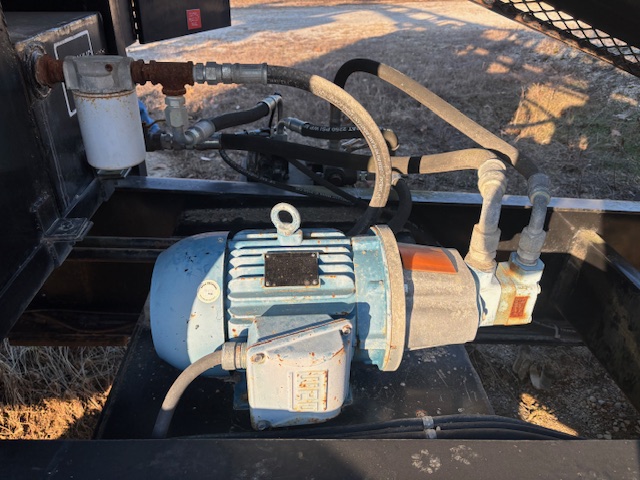

Pumps:

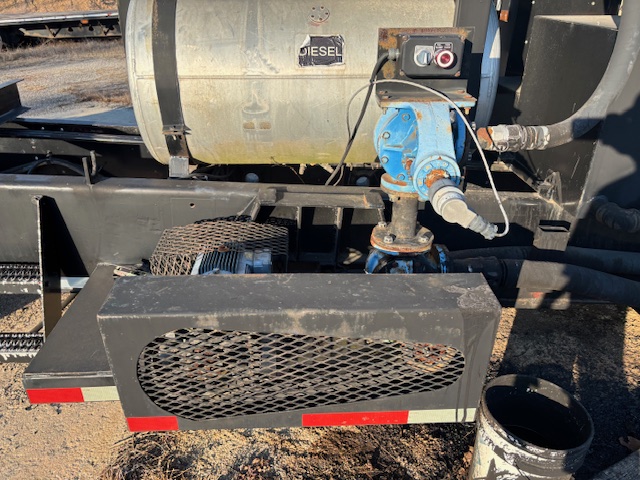

2 Viking pumps – one metering pump, one pump pushing pump
Axles & Tires:
2 axles / 11R22.5
Additional Features:
Splash gate on the back of the unit
Running on 3-phase 480V land power
Spot for a 60-70 KW generator (GENERATOR NOT INCLUDED)
120-gallon diesel tank is attached and included
Requirements:
AC/emulsion tanker needed onsite while making cold mix, owner brings in as needed, not included in sale.
Owner runs plant as needed and buyer can see unit run at time of inspection.

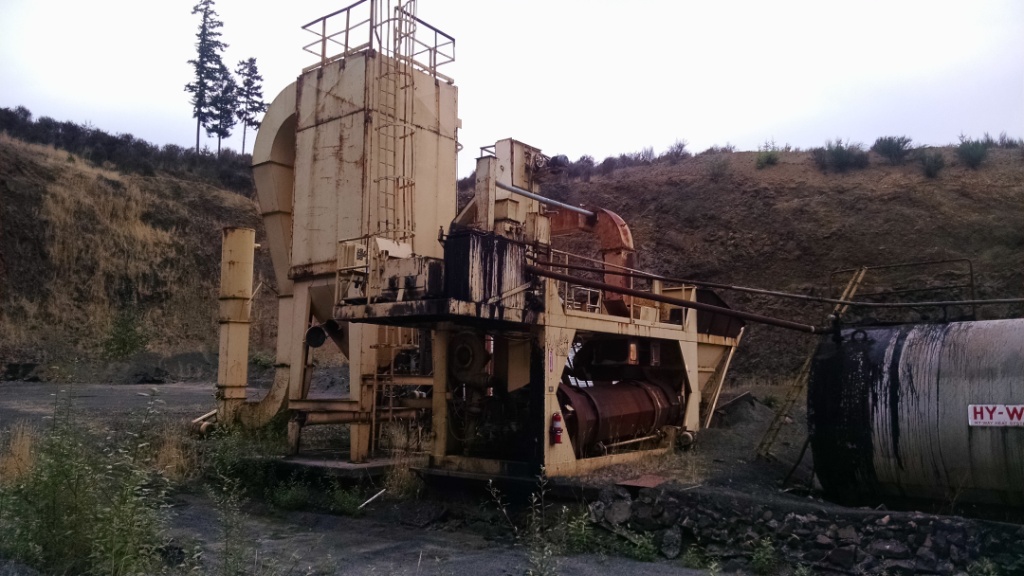

## Also Listed Under Pugmills, Inventory #: PG2717
**Make**: Wylie
**Mode**l: Roadmaster 3140
**SN:** 16304
**Year**: 1978
**Size**: 40 tph

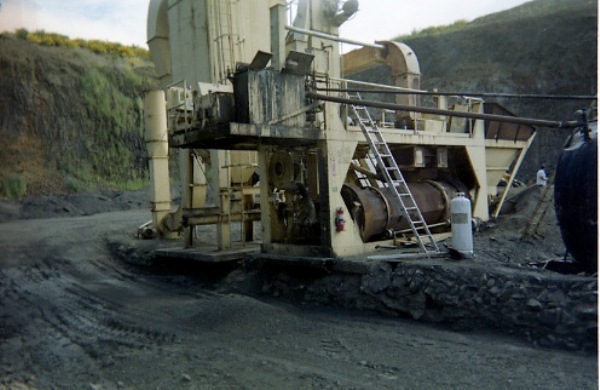

**Continuous Mixing Tower**
* serial number 16304.

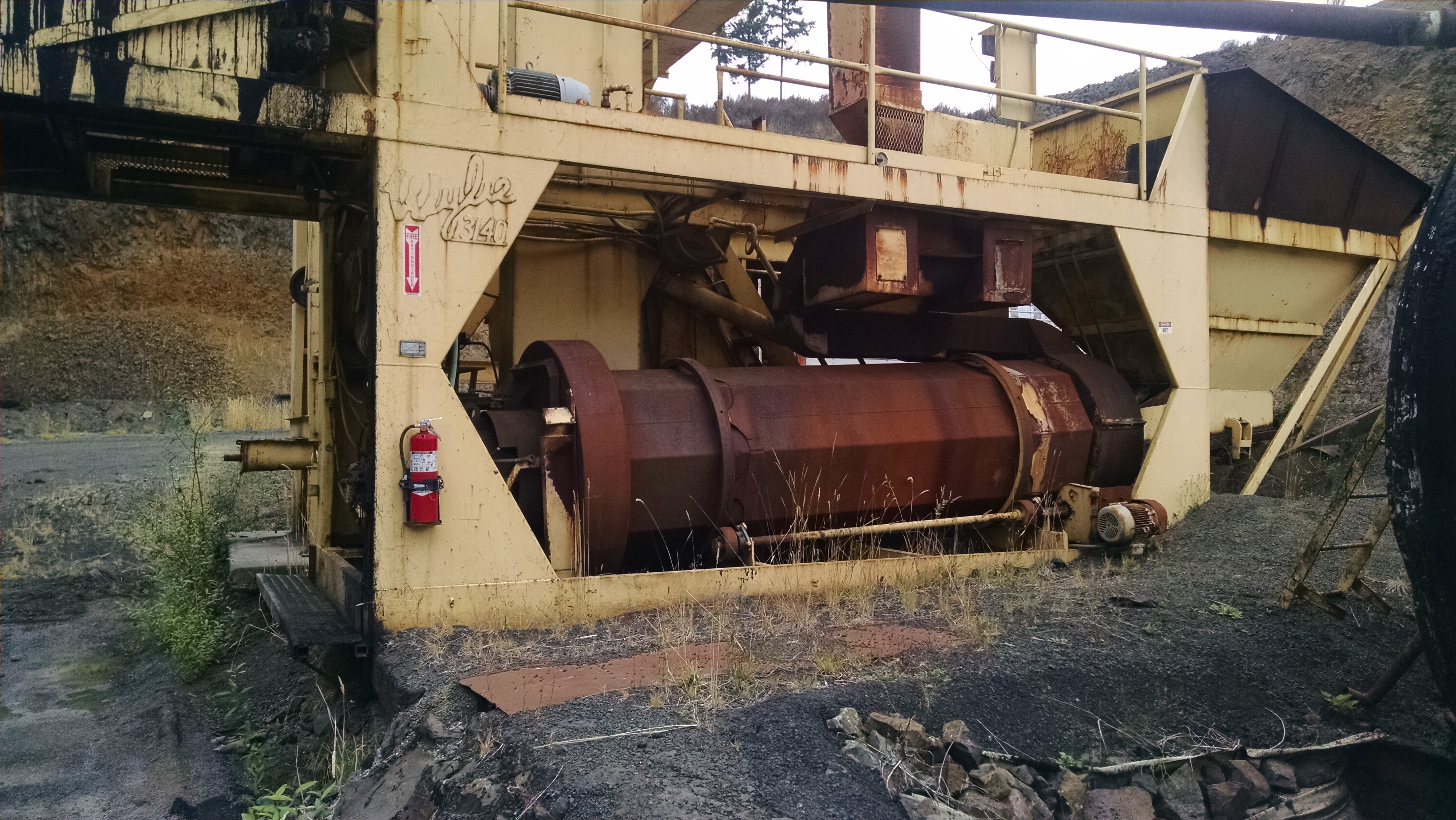

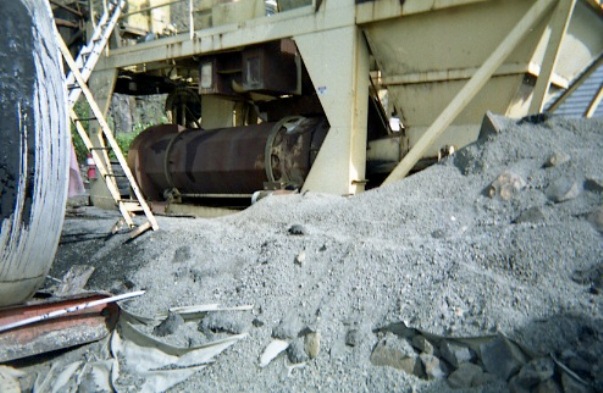

**Drum**
* 4 x 12 Wylie Drying Drum.
**Burner**
* Hauck TBA 21 10 x 0 x 5
* 11 million BTU
* Diesel burner.

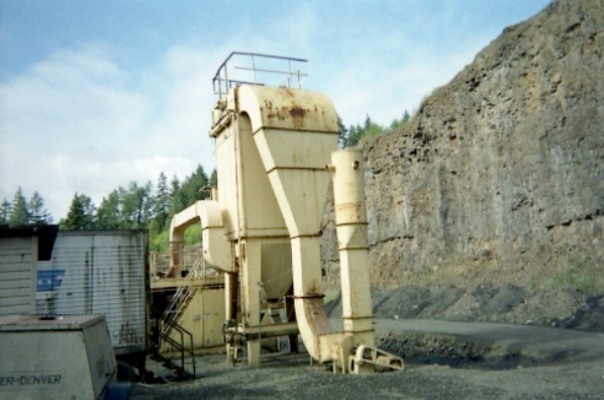

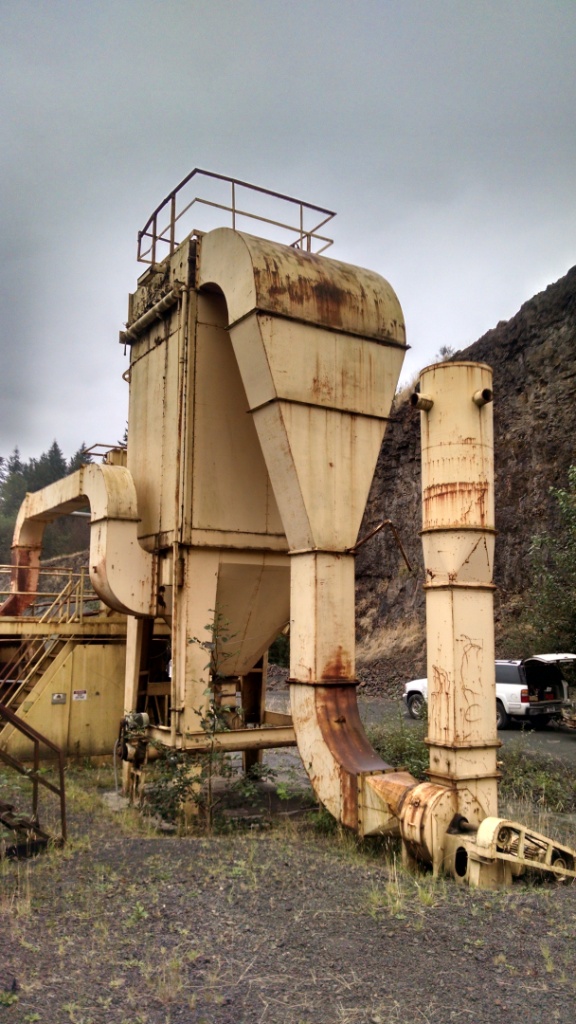

**Pollution Controls:**
* High efficiency
* Wylie
* Model: 3140
* ACFM: 18,000
* 90 Bags, 6'' x 149'', 11755 sqft filer area
* 14 ounce Aramid Felt
* Stationary
* Pulse-jet baghouse
* 90 bags, has newer bags

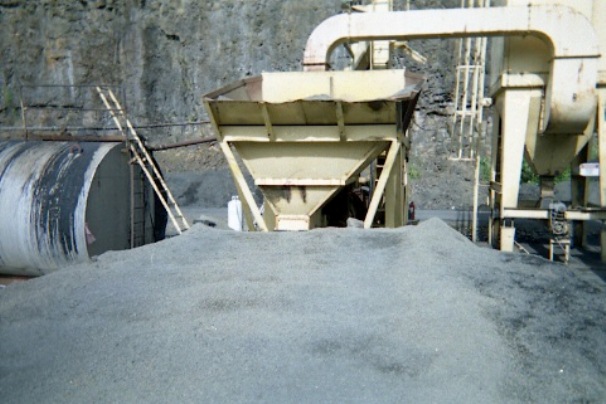

**Cold Feed:**
* Single compartment cold feed bin including adjustable gate for flow control feeding directly into the dryer.
**Silos & Drag Conveyor:**
* Not OFFERED
*Additional silo options may be supplied by ASI for an additional price.
**Controls:**
* Electrical gear protected by NEMA rated panels containing starters/breakers
**AC Tank:**
* One 10,000 gallon
* Electrically heated
NOTES: PLANT NOW ON GROUND, READY FOR LOAD OUT. WELL MAINTAINED. NOT A LOT OF TONNAGE RAN THROUGH PER OWNER. SOME UPGRADES, SOME NEWER MOTORS.
