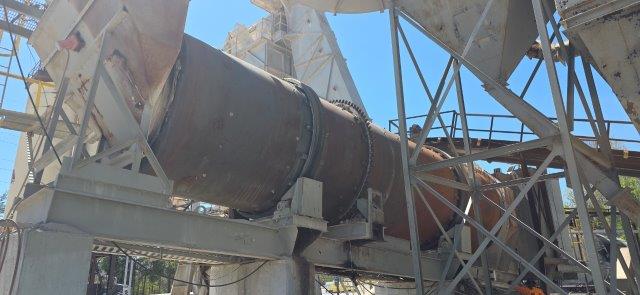

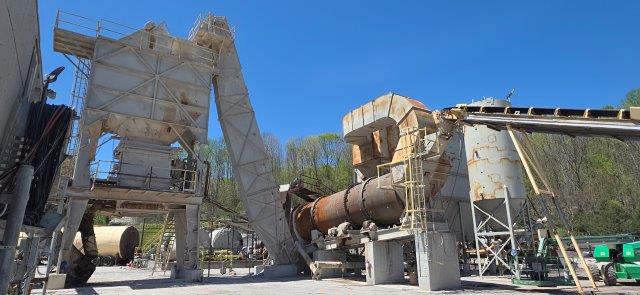

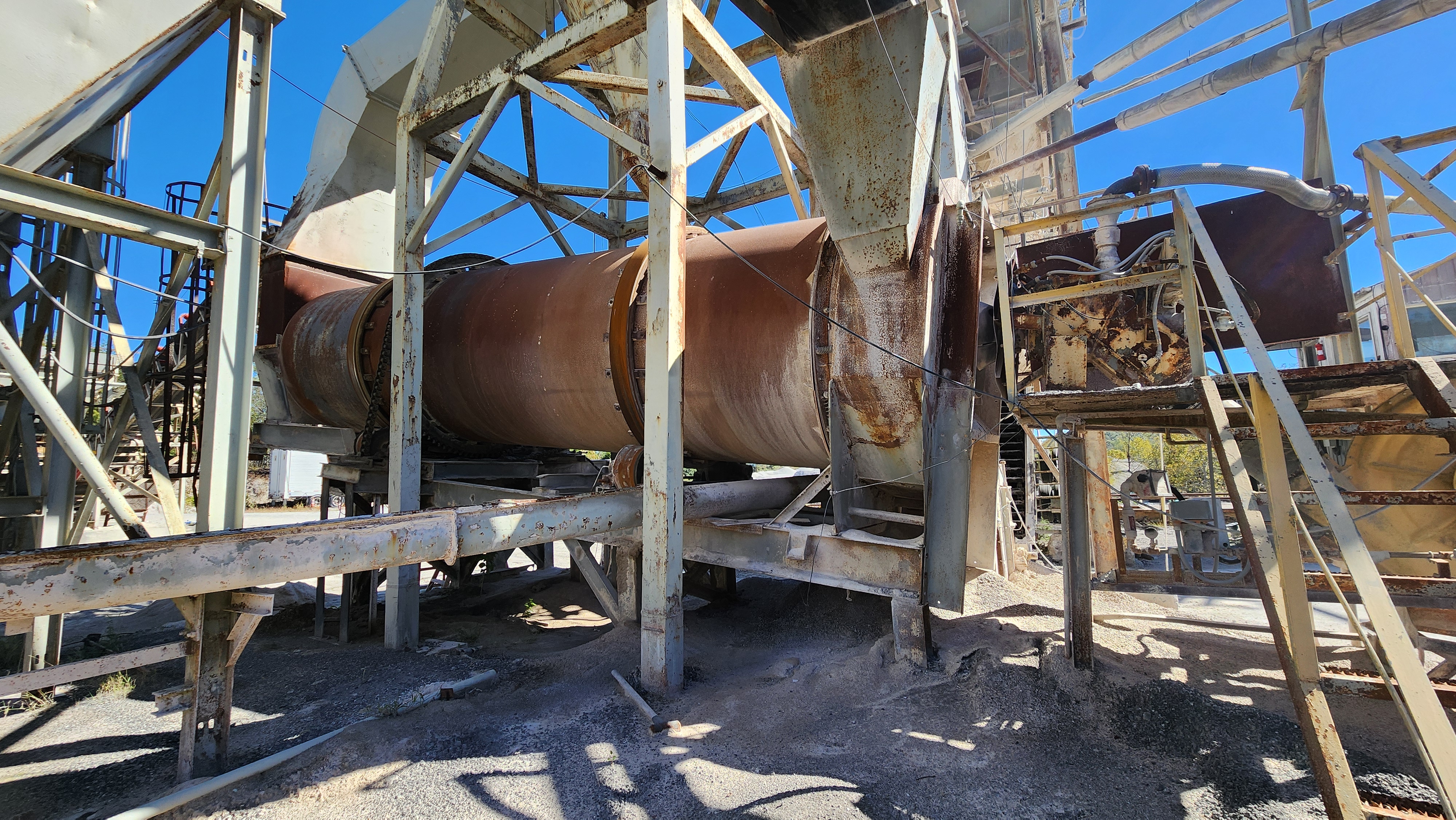

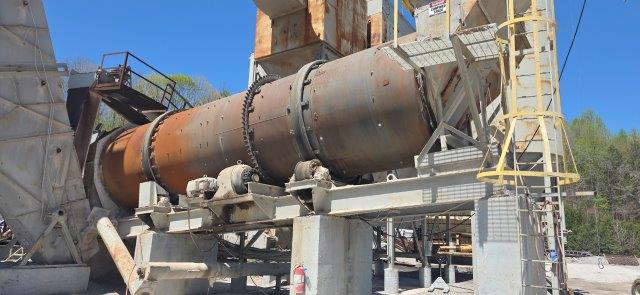

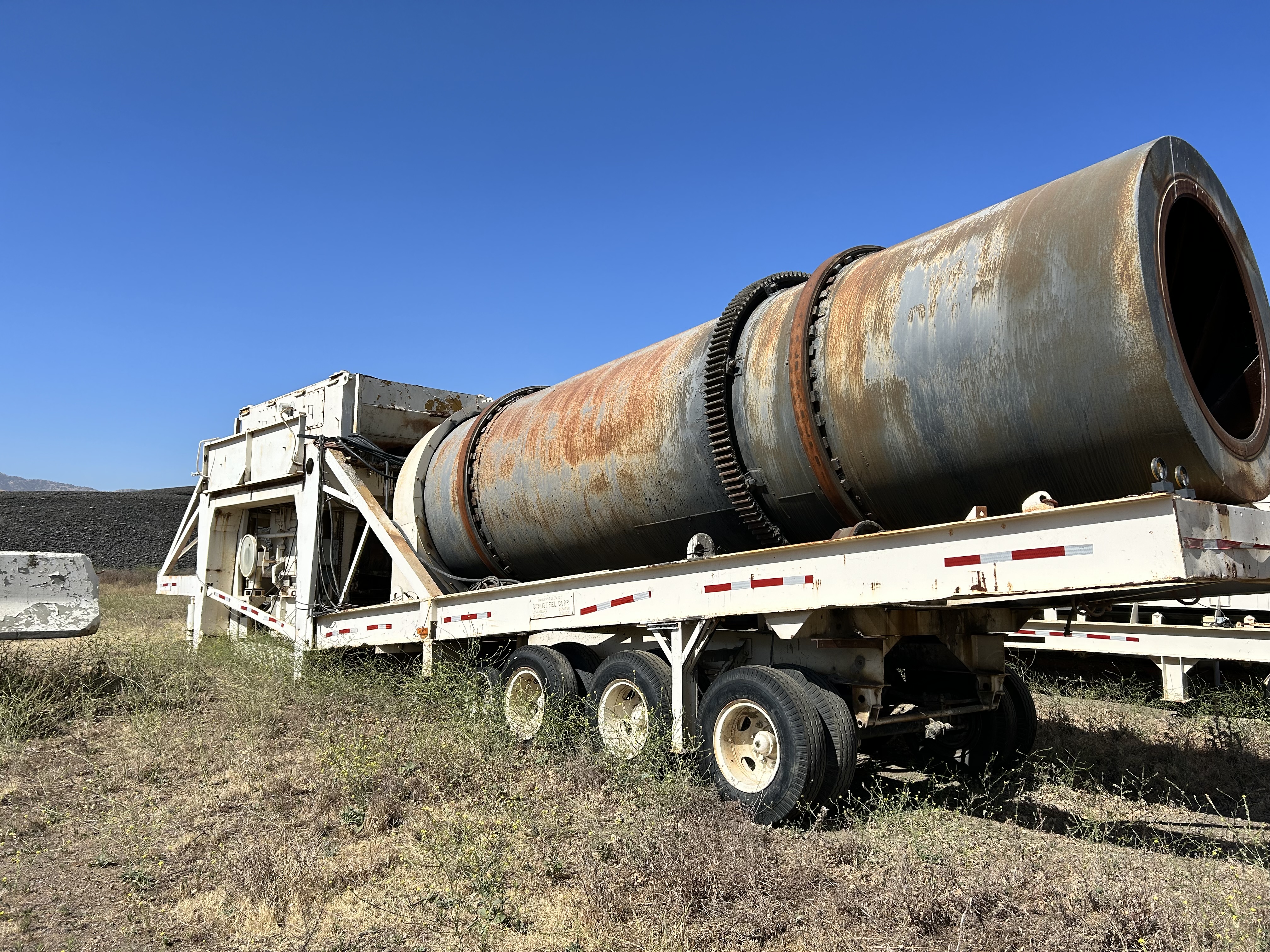

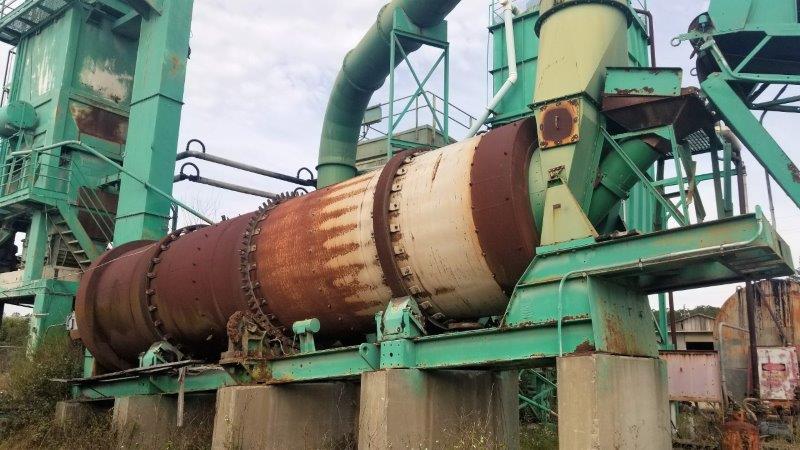

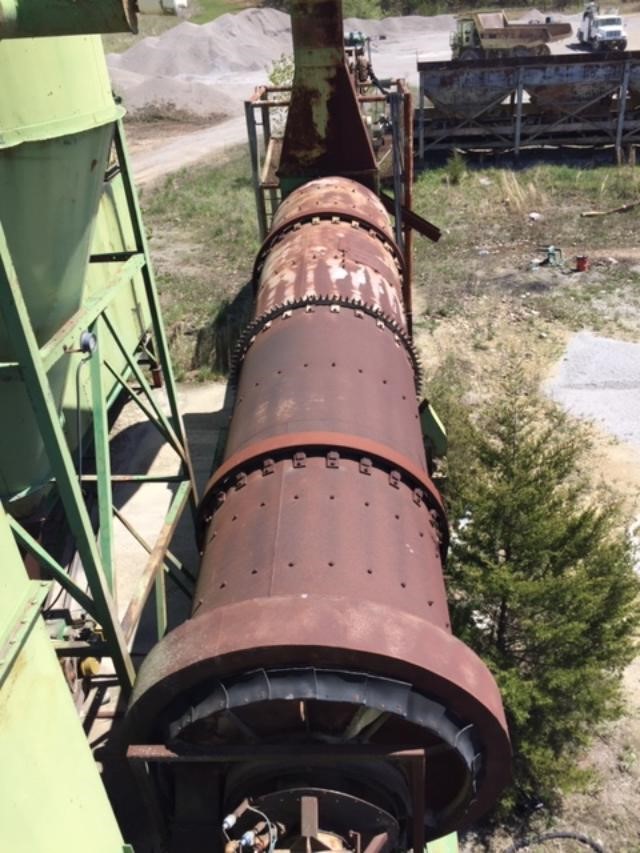

**Dryer:**
**Make**: Cedarapids
**Drum Size:** 8’ diameter x 34’ long
**Portability**: Stationary
**Rap Collar**: Yes
**Vibrators**: Air vibrator on breaching
**Gravity Chute**: Yes, incline conveyor delivers materials to gravity chute
**Breaching:** Yes, Air vibrator on breaching

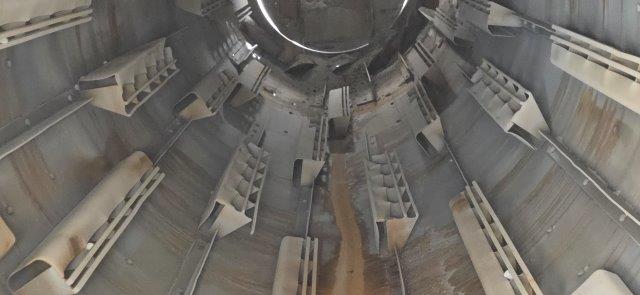

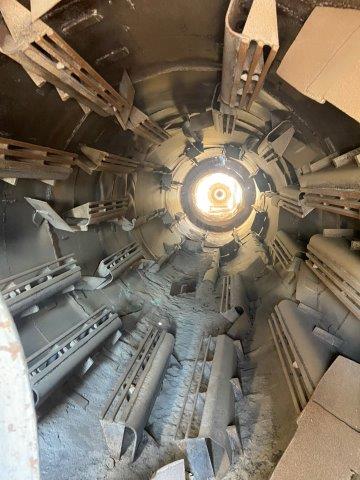

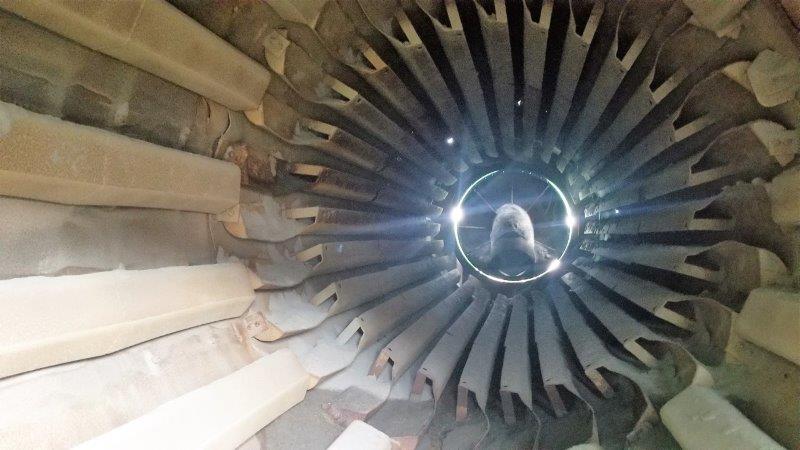

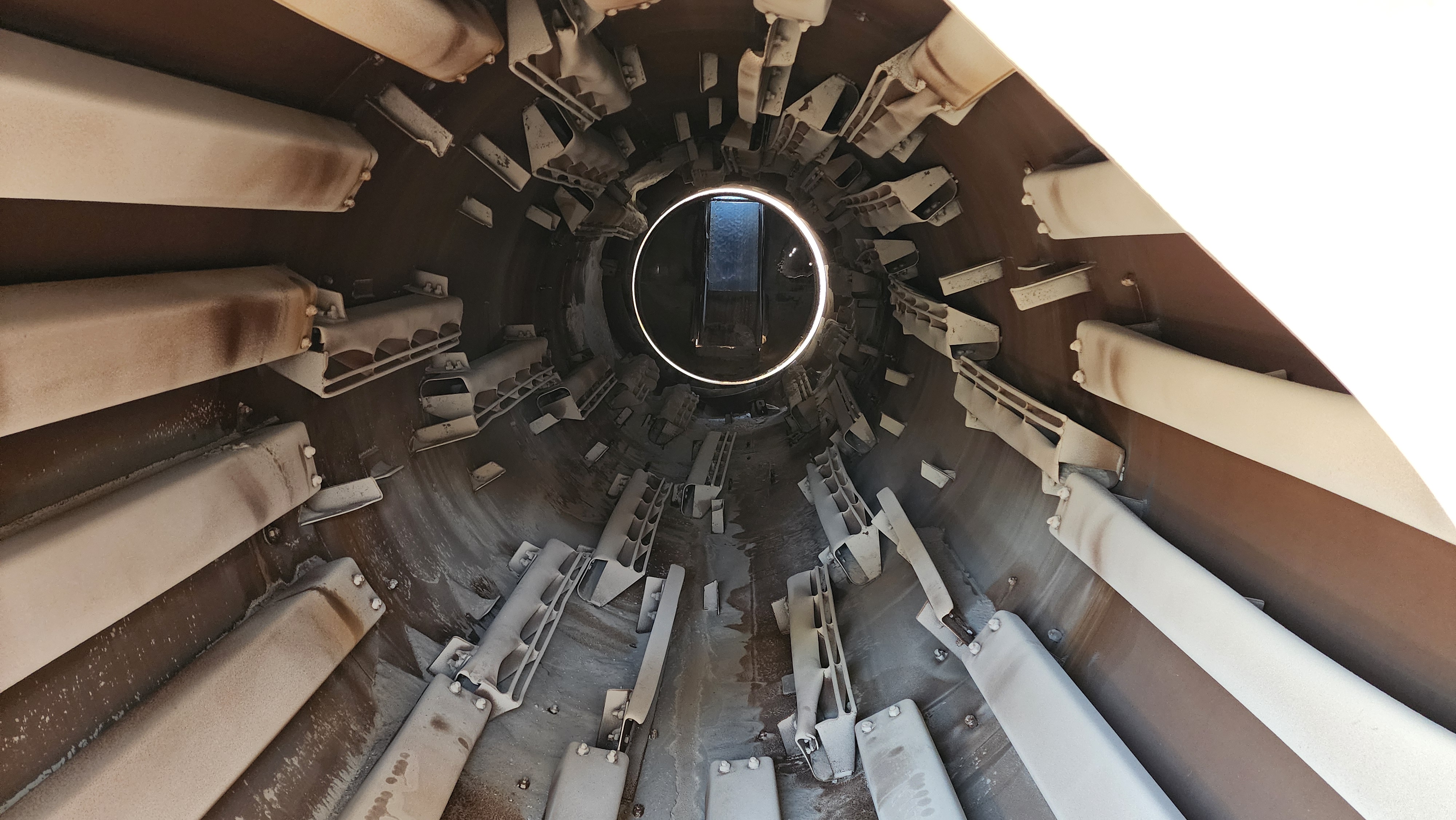

**Flights:** Fair condition
**Driving System:** Chain drive system
**Motor**: 75 hp
**Gearbox**: Foot Jones

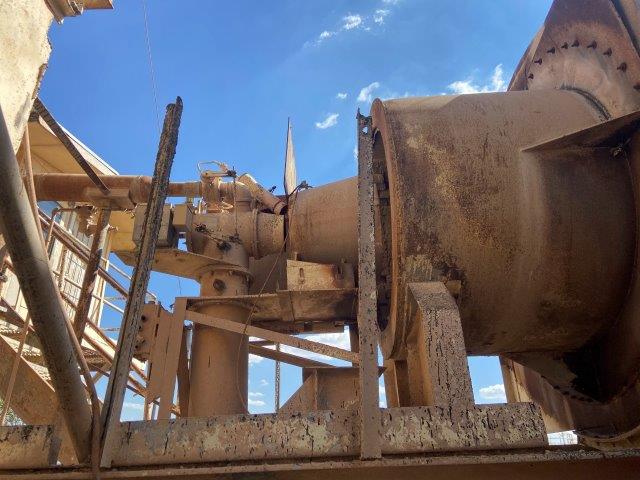

**Burner Make**: Gencor
**Burner Model:** AF-60
**Burner Fuel Source**: Tri-fuel
**Blower HP**: 60 hp
**Noise Reduction Chamber:** Yes
**Condition Notes**: Poor condition with visible hole and previous lining work
**Standing/On Ground:** Standing
* If purchased separately $23,400.00

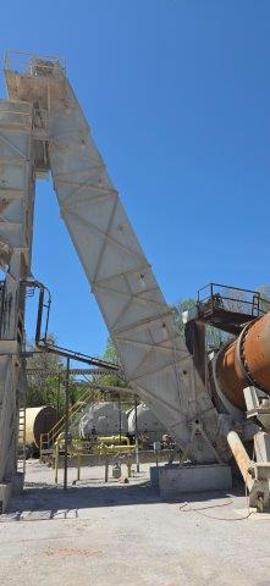

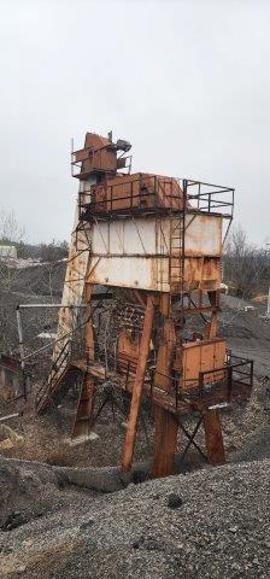

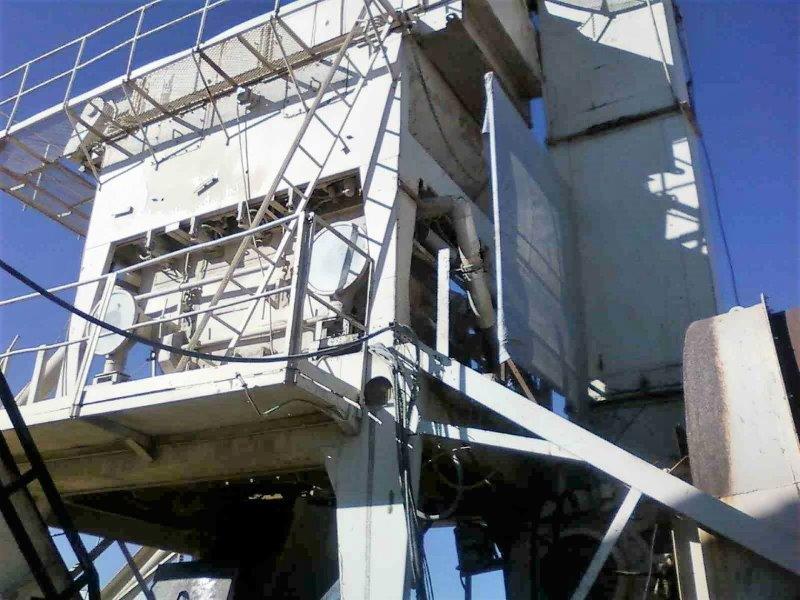

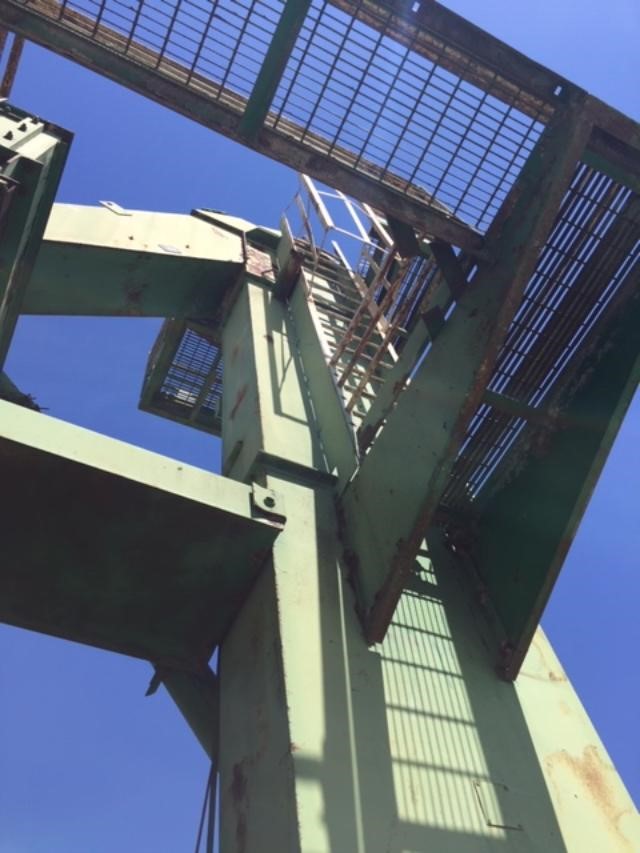

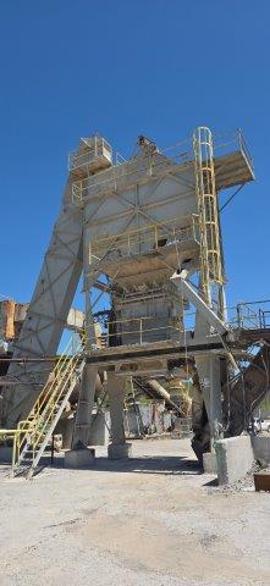

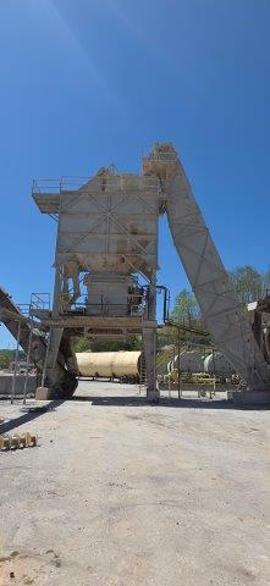

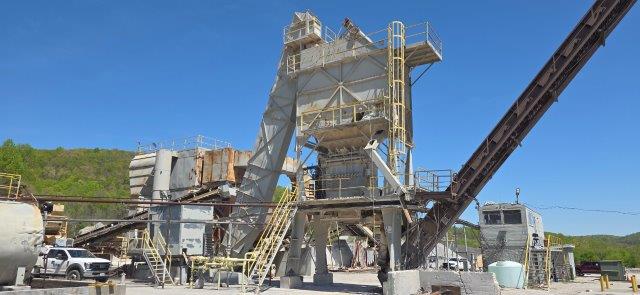

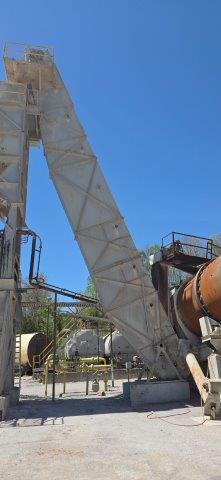

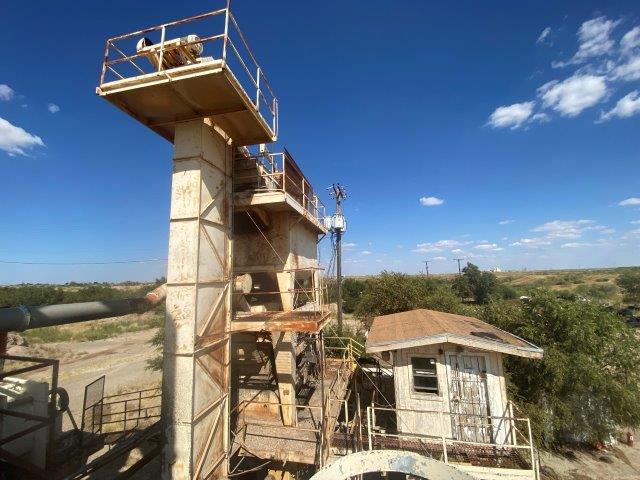

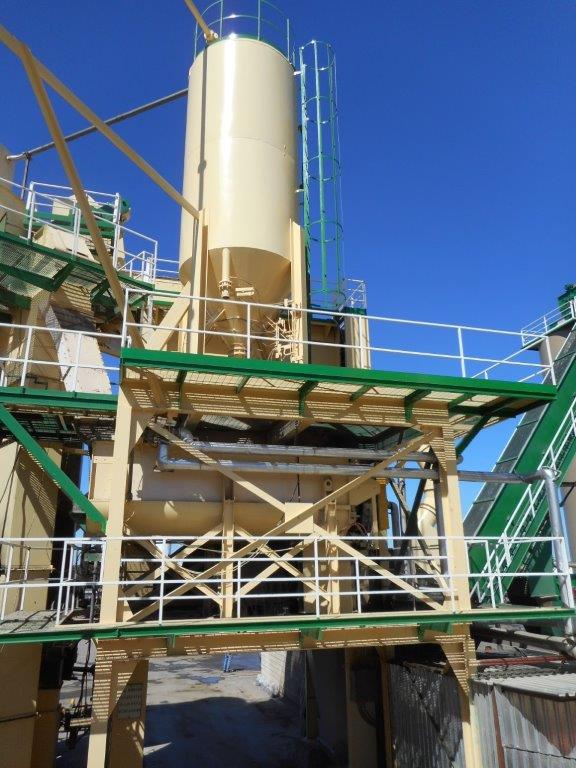

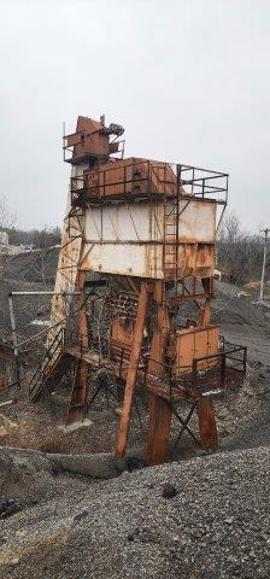

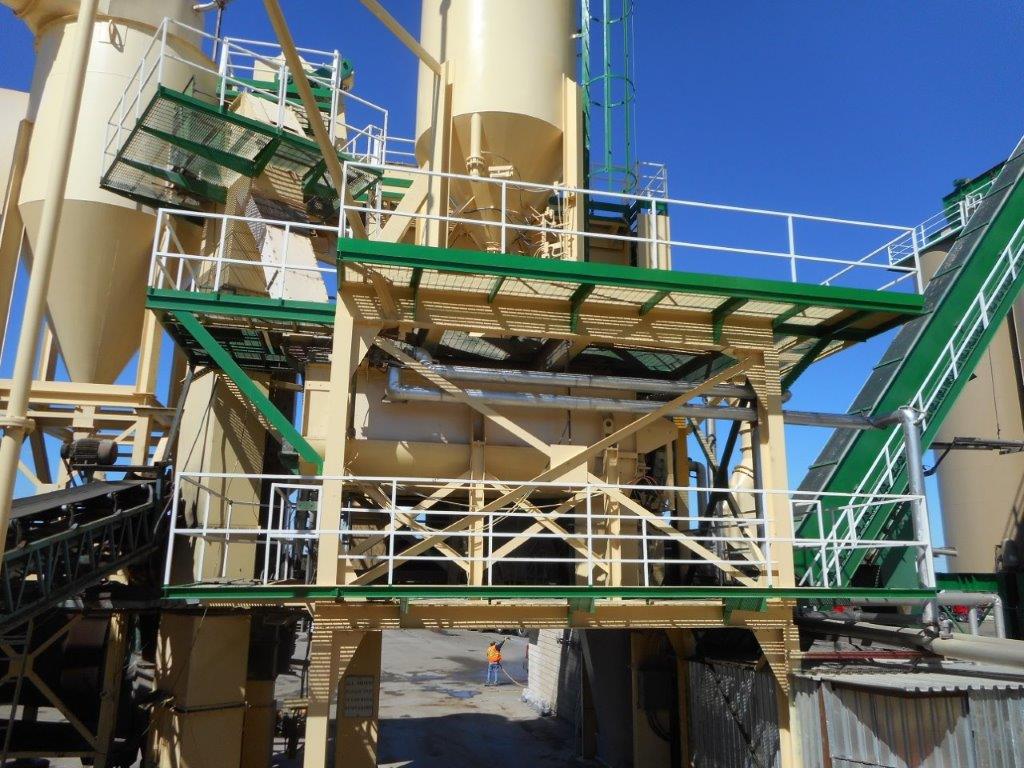

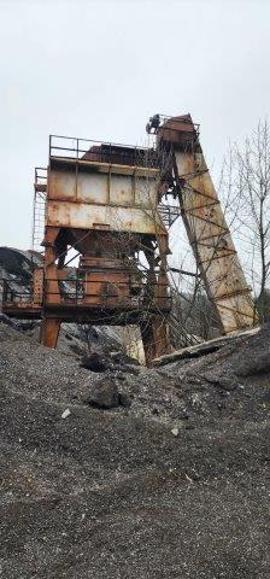

**Hot Elevator and Batch Tower**:
**Make:** Cedarapids
**Size (Lb)**: 8,000 lb
**Number of Hot Bins:** 4
**Kettle Included**: [Yes/No]

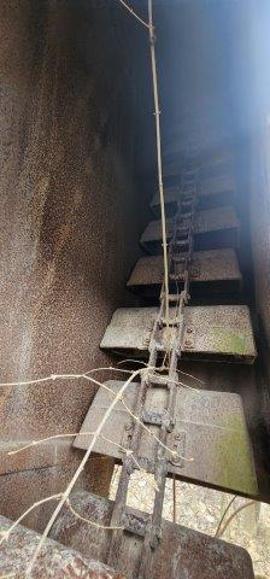

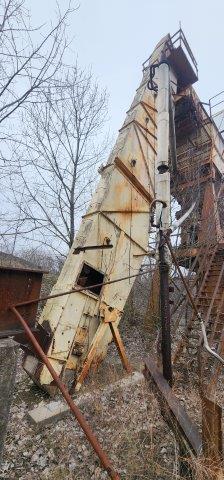

**Bucket Elevator:** Incline
**Vertical or Incline**: Incline
**Chain**: Double-strand 6” pitch roller chain

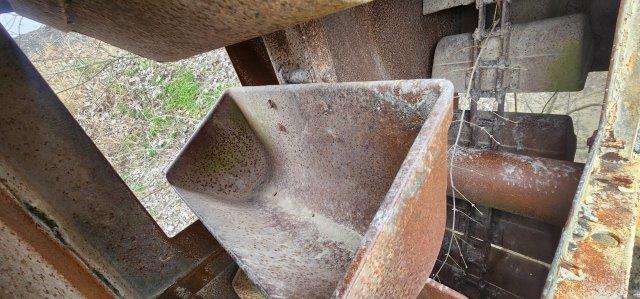

**Bucket Sizes:** 10” x 18”
**Elevator Motor** HP: 25 hp

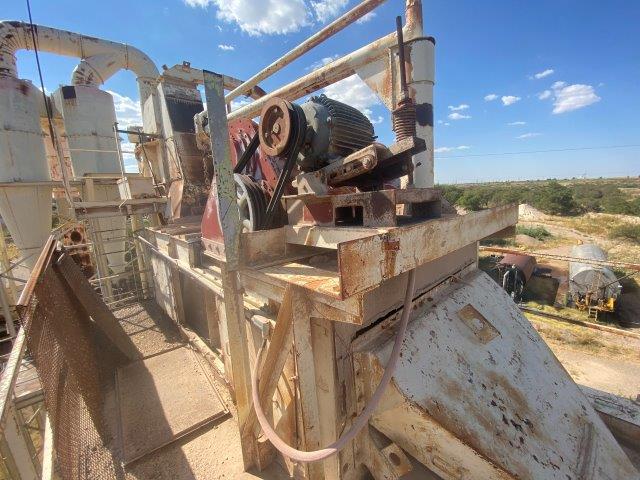

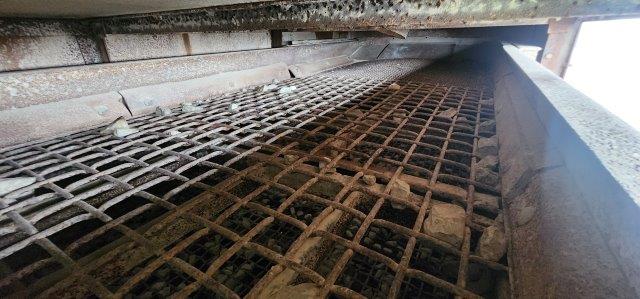

**Screen Make**: Deister
**Horizontal or Incline**: Horizontal
**Number of Decks**: 4-1/3
**Motor HP**: 30 hp

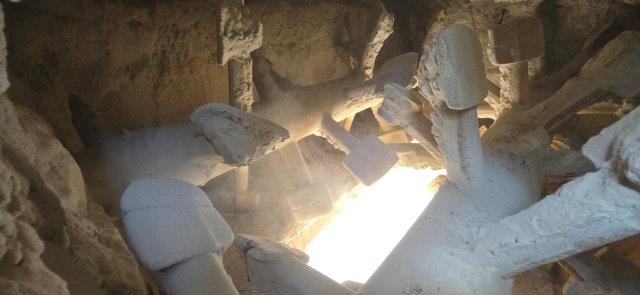

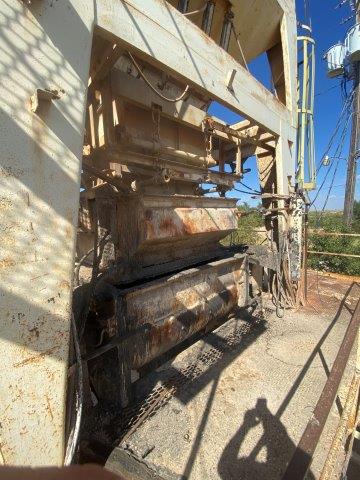

**Pugmill Capacity/Size**: 8,000 lb
**Pugmill Motor**: 125 hp

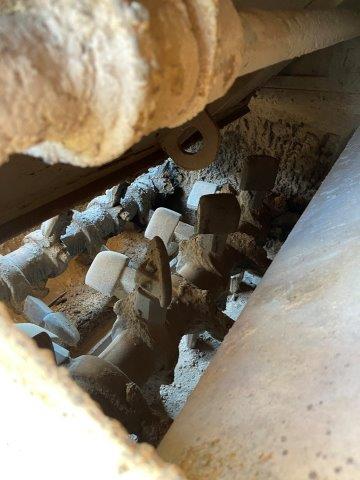

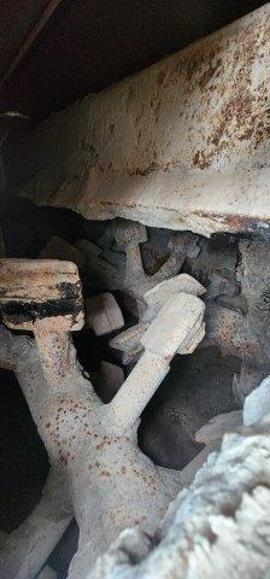

**Arms, Tips, Paddles, and Liner**: Fair condition
**Condition Notes**: Arms, tips, paddles, and liners in fair condition
**Standing/On Ground:** Standing
* If purchased separately $15,600.00

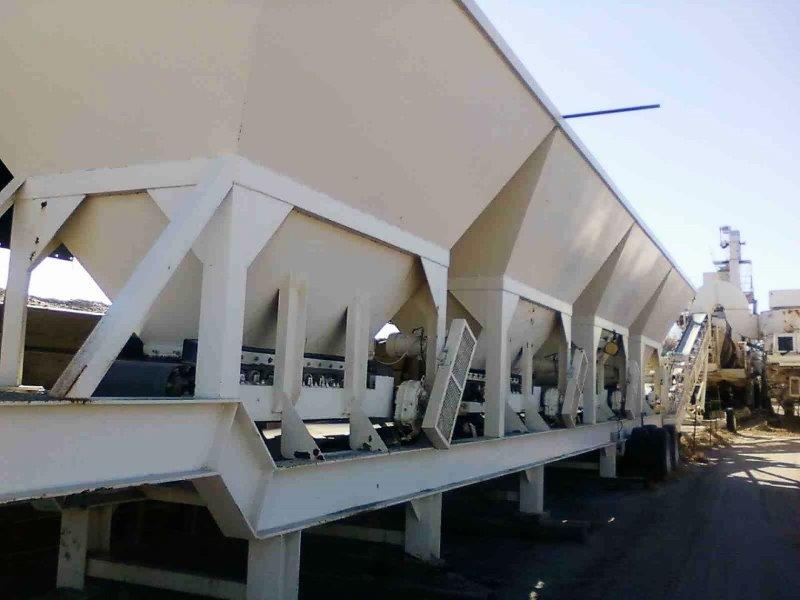

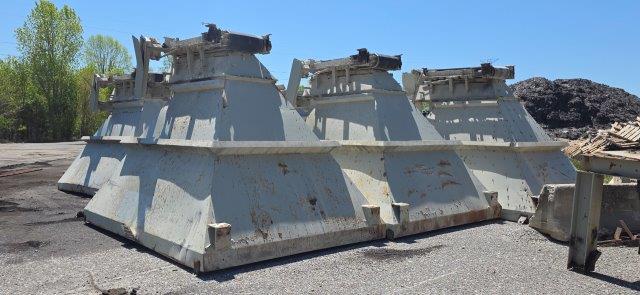

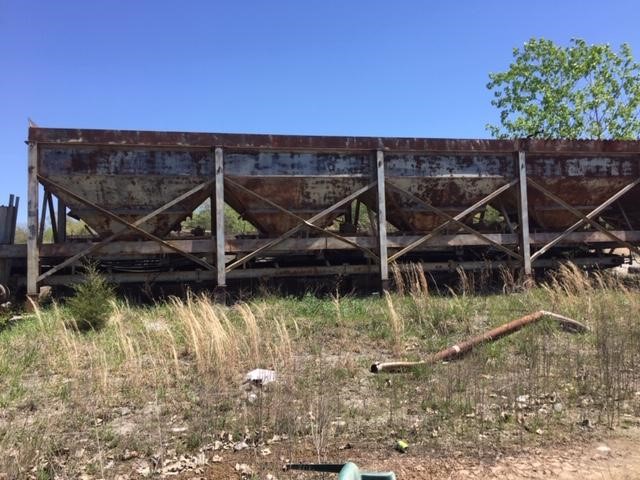

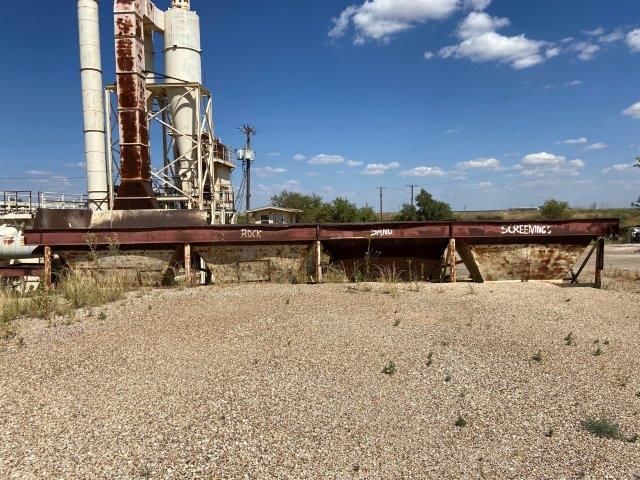

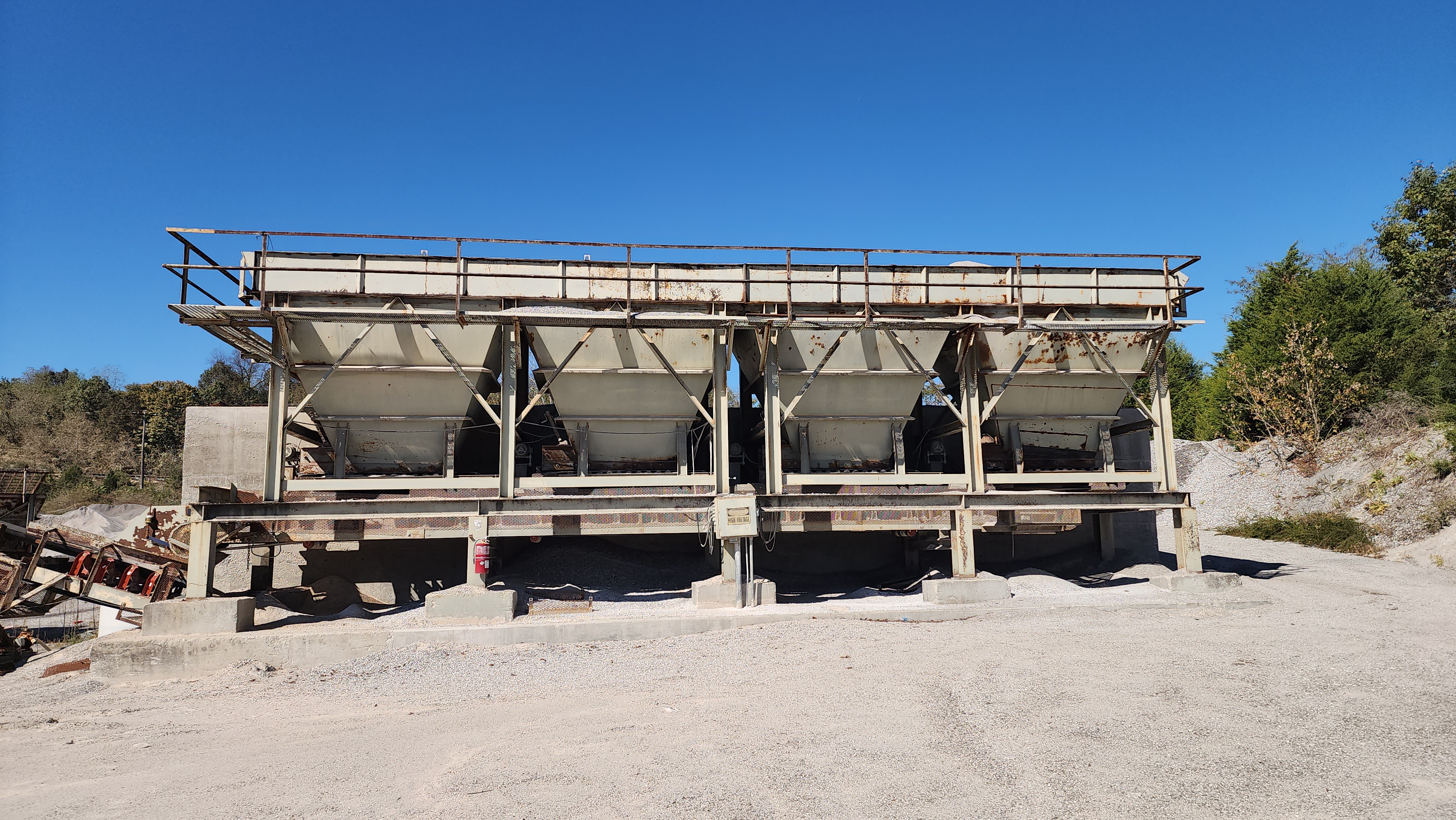

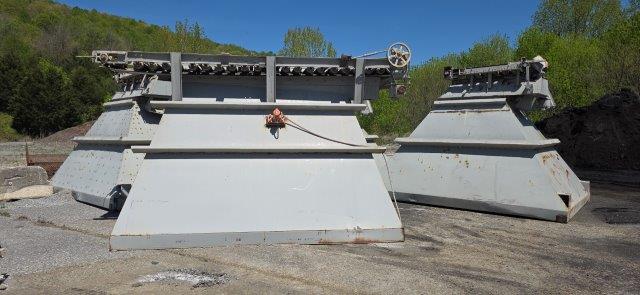

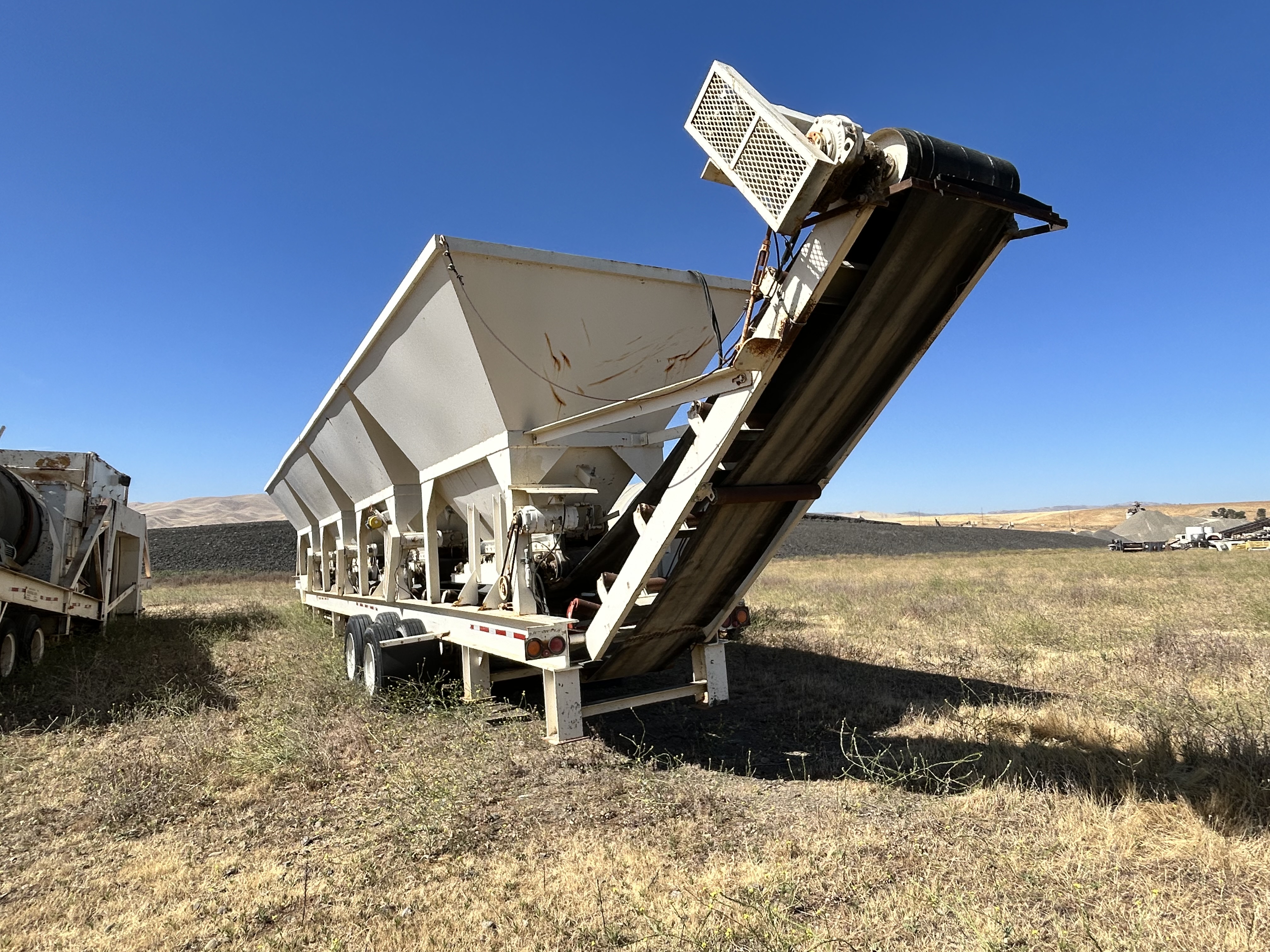

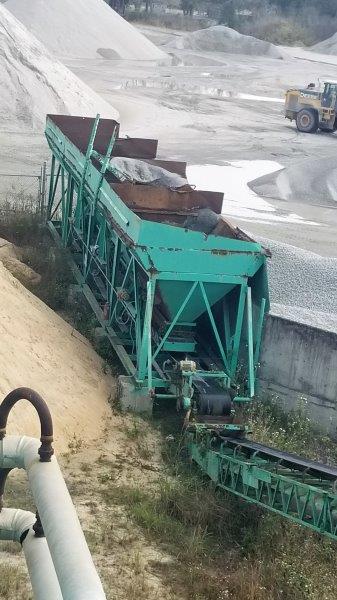

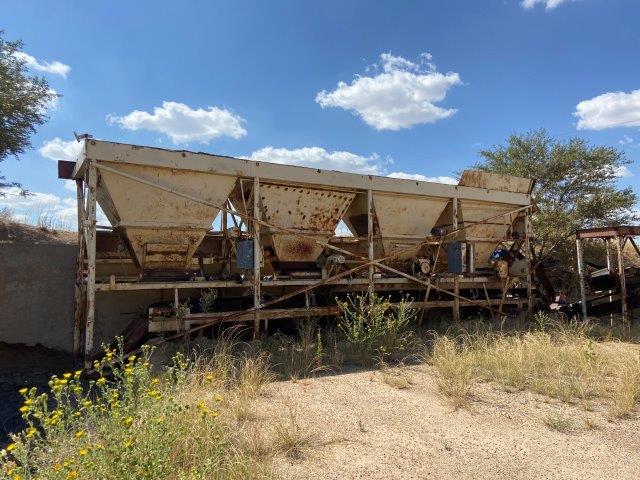

**Cold Feeds:**
**Number of Bins:** Five (5)
**Bin Size**: 10' x 14' top openings
**Portability**: Stationary
**Variable Speed Feeders**: Yes
**Grizzlies**: No
**Motors**: 3 HP D.C. motors on bin feeders
**Drives**: Yes
**Reducers**: Yes
**Belt Feeder Conveyor:** 24" x 45' conveyor
**Belt Feeder Conveyor Motor:** 3 HP
**Collecting Conveyor**: 30" x 60' collecting conveyor
**Collecting Conveyor Motor(s)**: 10 HP
**Extenders:** Bin extensions and dividers for added capacity
**Walkway:** Side walkway included
**Standing/On Ground:** On ground, disassembled
* If purchased separately $23,400.00

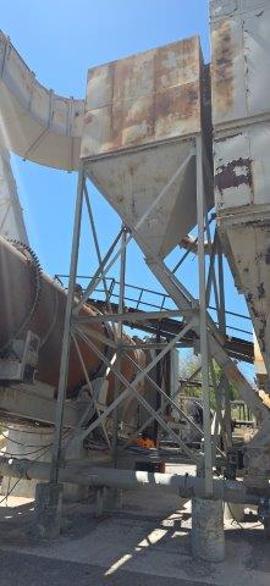

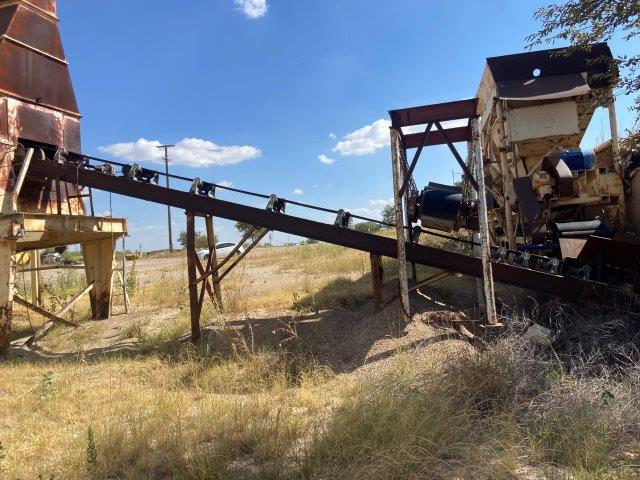

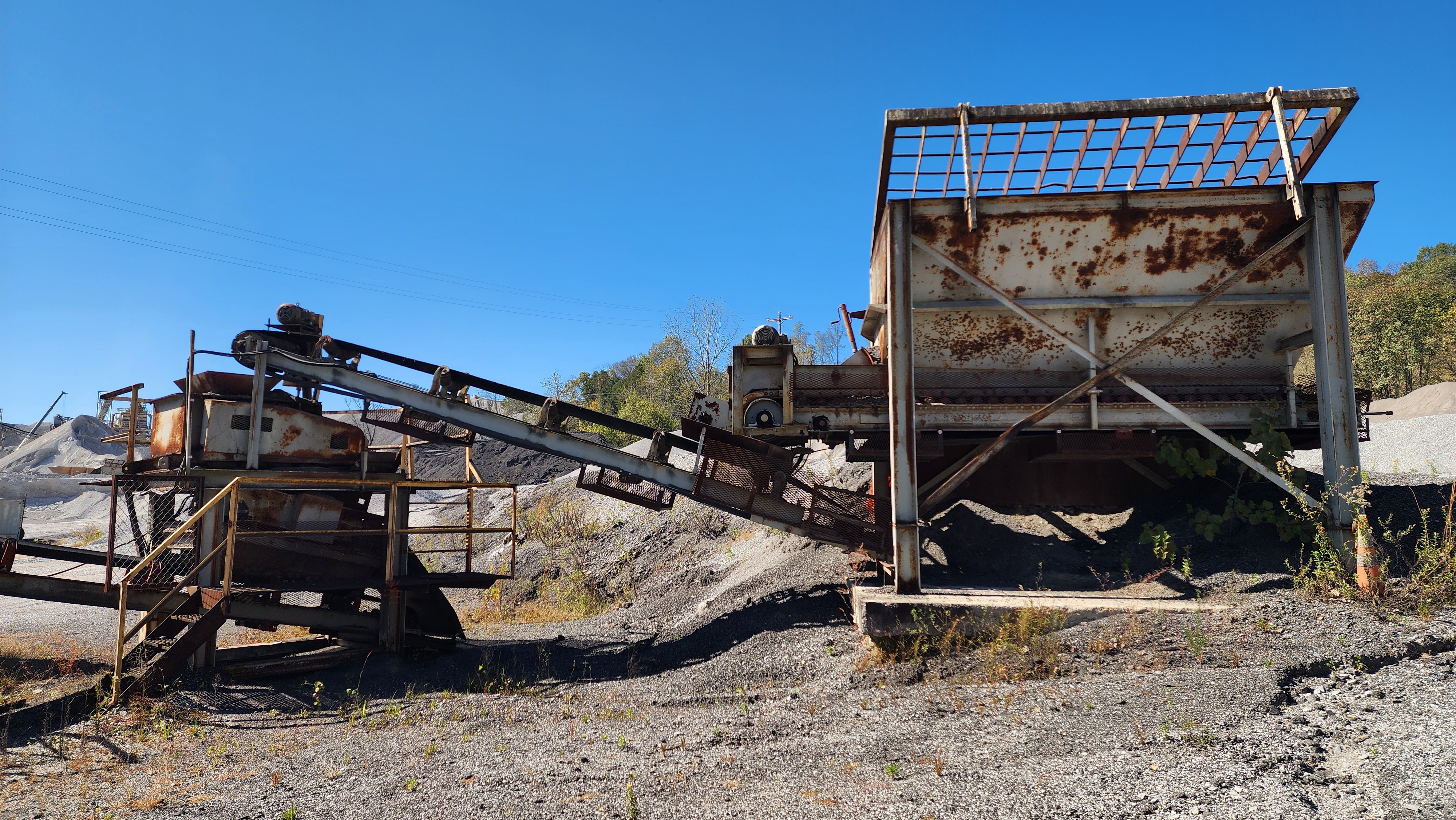

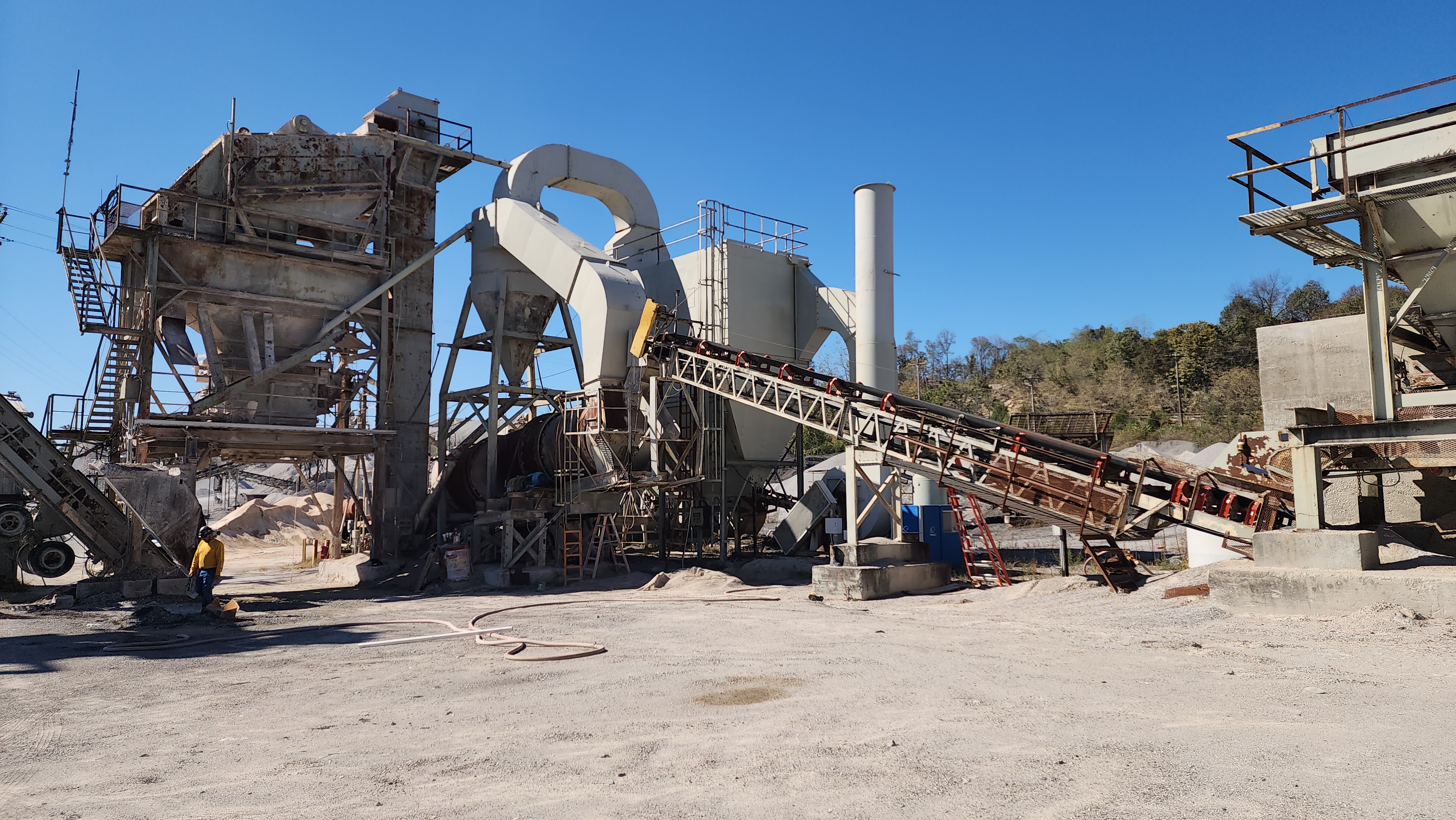

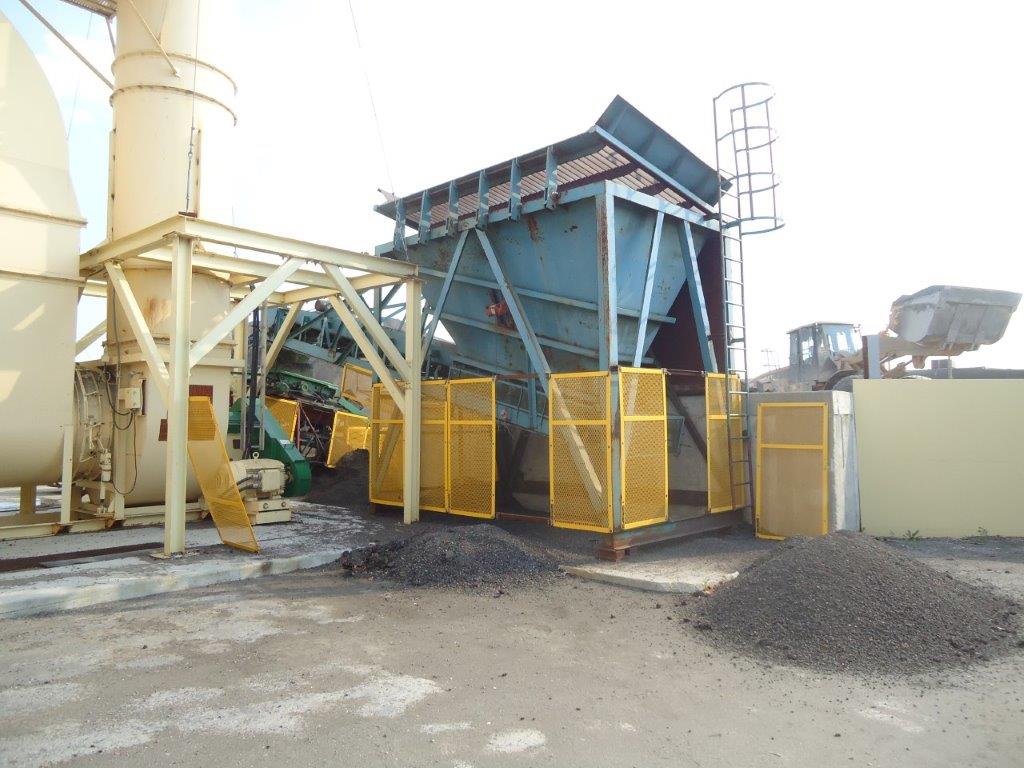

**RAP System**:
**Number of Bins**: 1
**Bin Size:** 13’ x 19’ top opening
**Portability**: Stationary
**Grizzlies**: Yes
**Variable Speed Feeders**: Yes
**Belt Feeder Conveyor:** 30” wide x 15’ long
**Belt Feeder Conveyor Motor**: 5 hp D.C. motor
**Intermediate Feeder Conveyor**: 30” x 30’

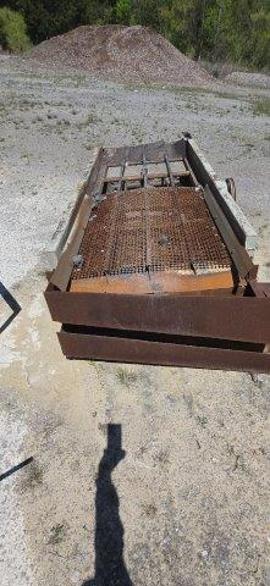

**Screen Size**: 4' x 10' double-deck (bottom deck removed)
**Screen Decks**: Double
**Weigh Bridge Conveyor**: 30” x 65’
**Weigh Bridge Conveyor Motor:** 7.5 hp motor
**Standing/On Ground**: Standing
* If purchased seperately $11,700.00

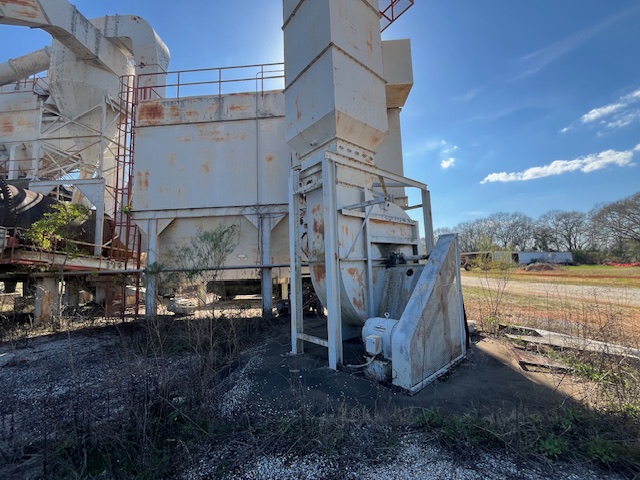

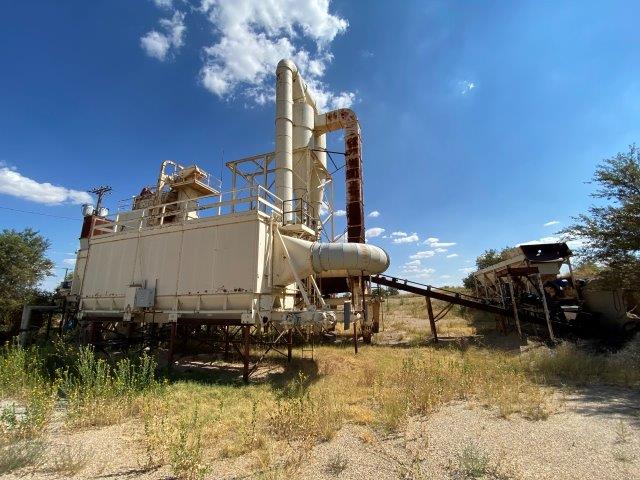

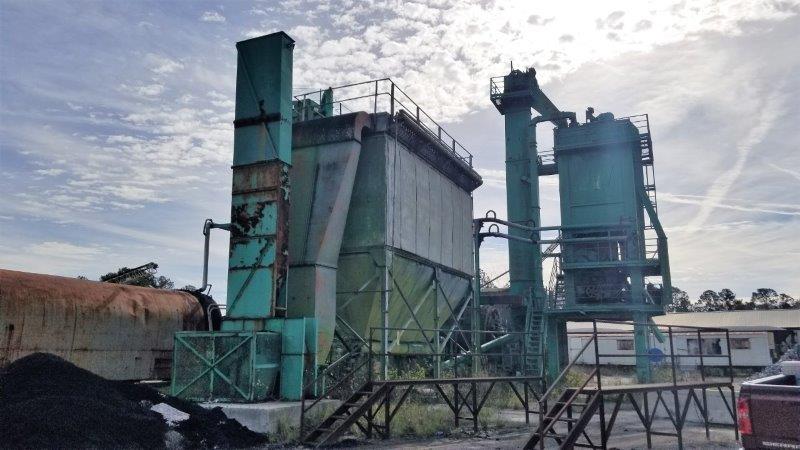

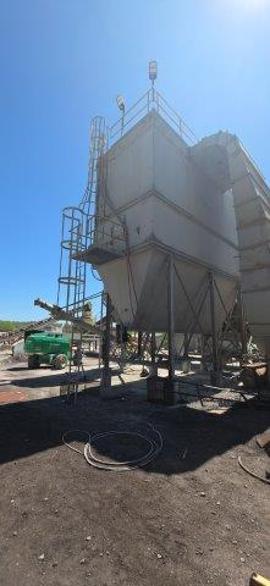

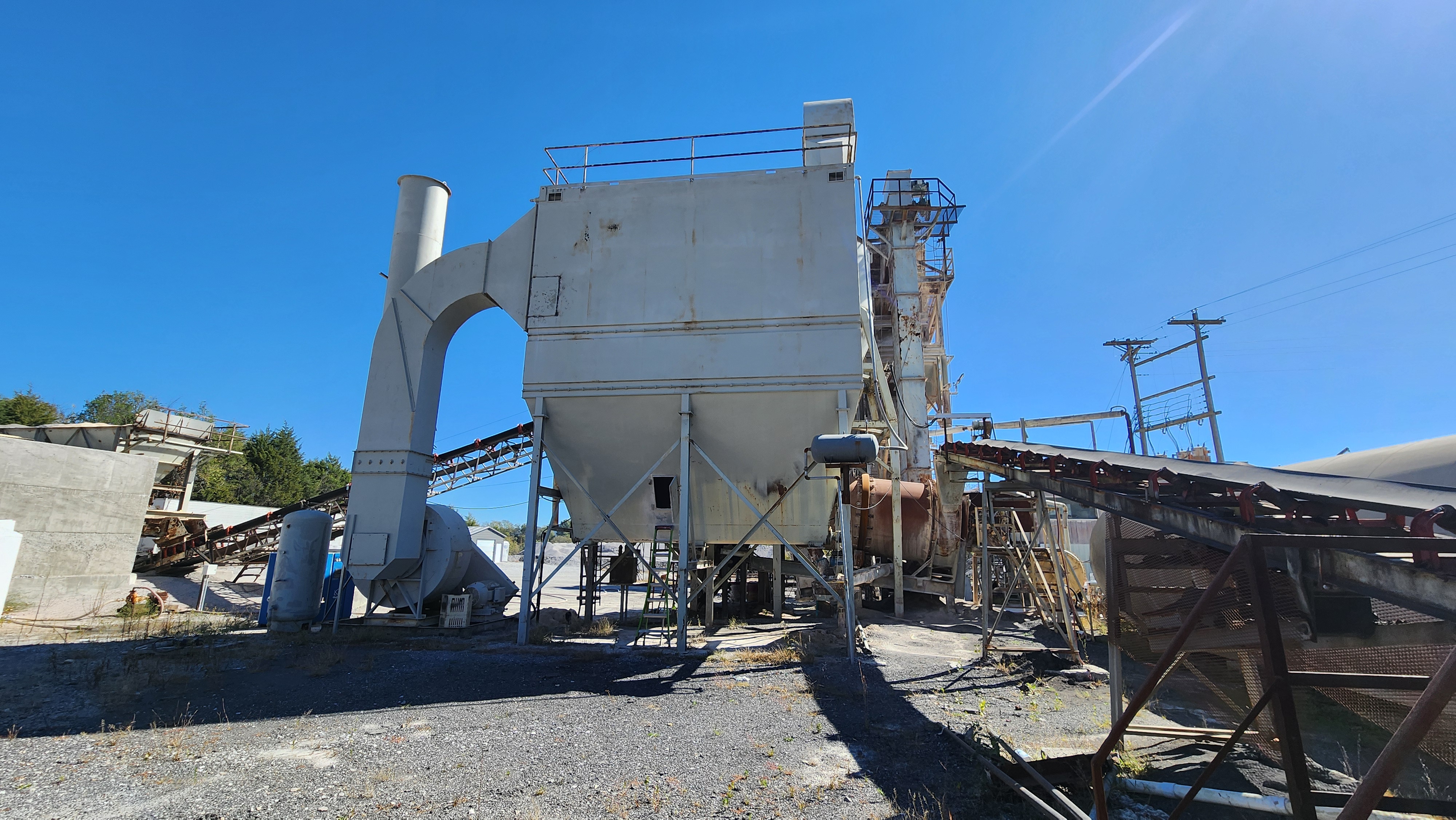

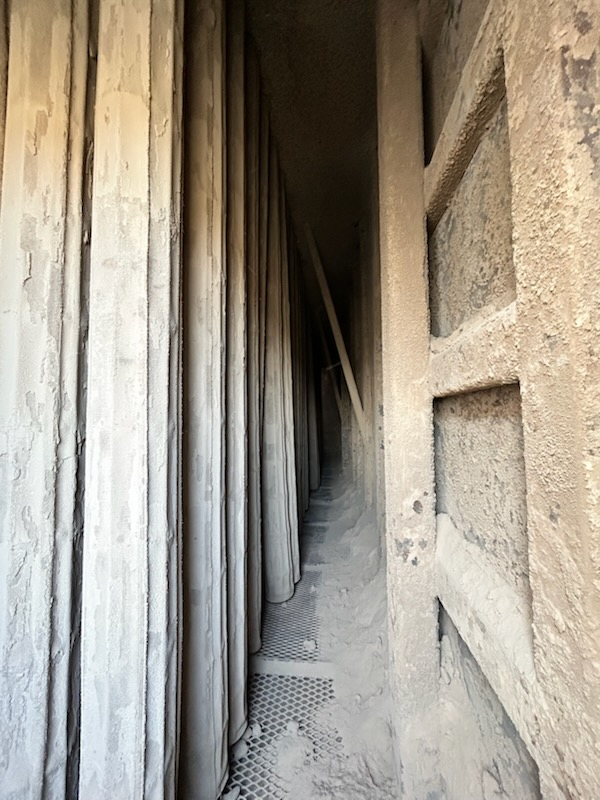

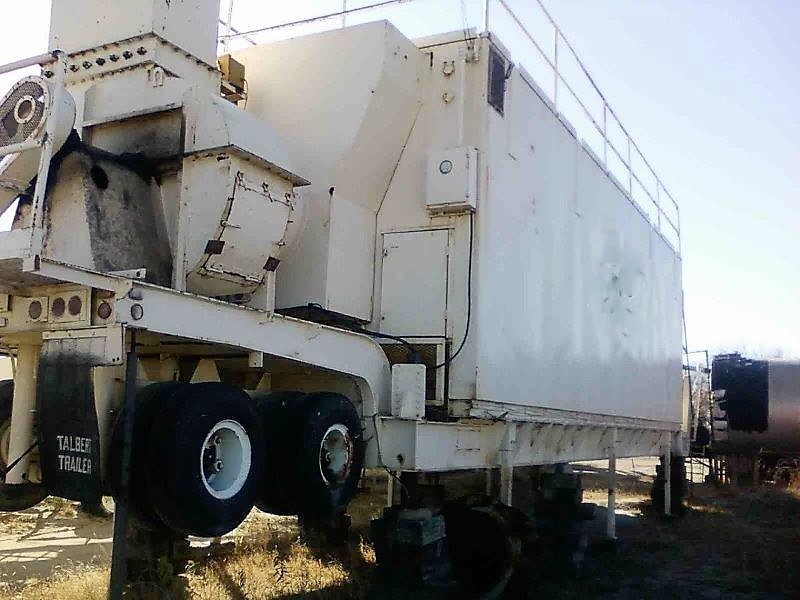

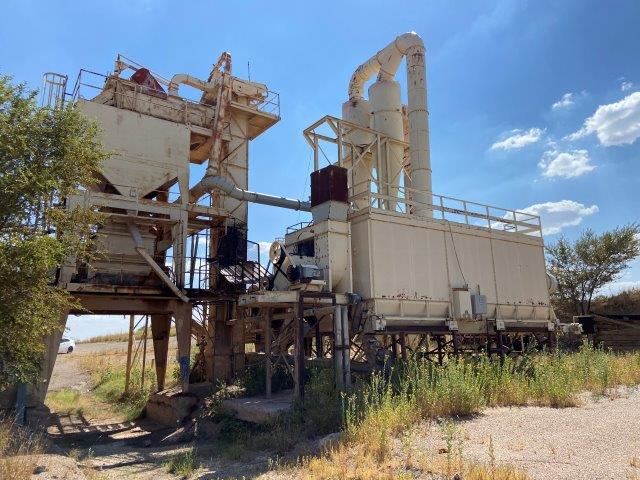

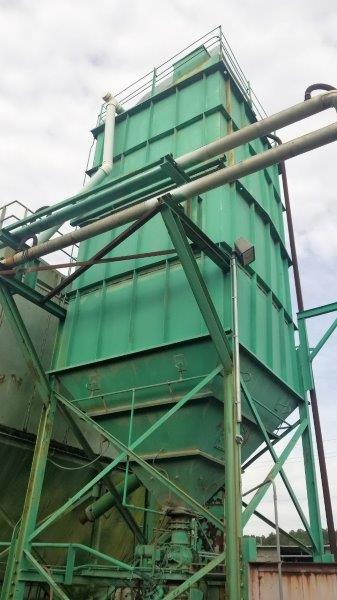

**Dust Control**:
**Make:** Standard Havens

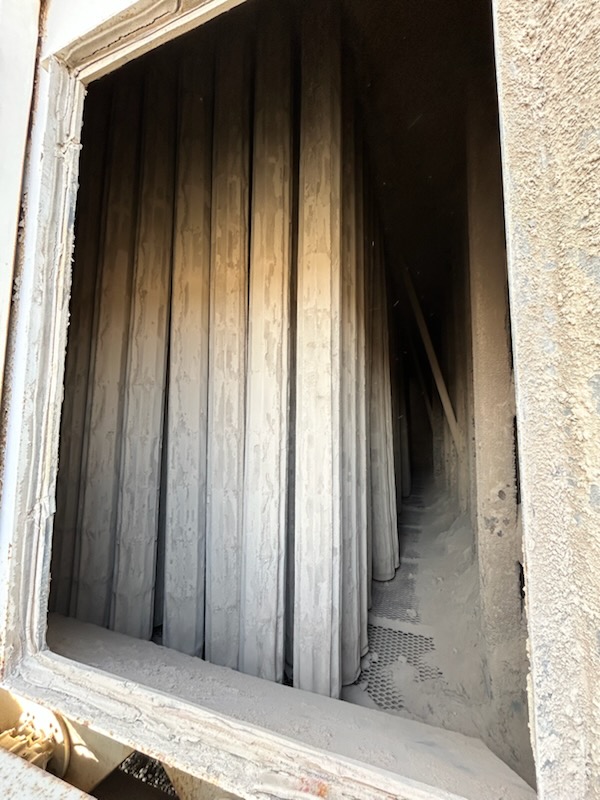

**Type**: Pulse Jet Baghouse
**Model:** Size 28
**Serial Number**: N/A
**ACFM:** 63,000
**Cloth Area:** ~12,096 sq. ft.
**Bag Count**: N/A
**Bag Size:** 6" x 16'
**Dust Discharge System**: Fines returned to hot elevator via two augers
**Fan**: Exhaust Fan Powered by Twin 125 HP Motors
**Portability**: Stationary
**Damper:** Automatic Outlet Damper
**Ductwork**: Complete with All Ductwork and Stack
**Standing/On Ground**: Standing
* If purchased sepatately $31,200.00

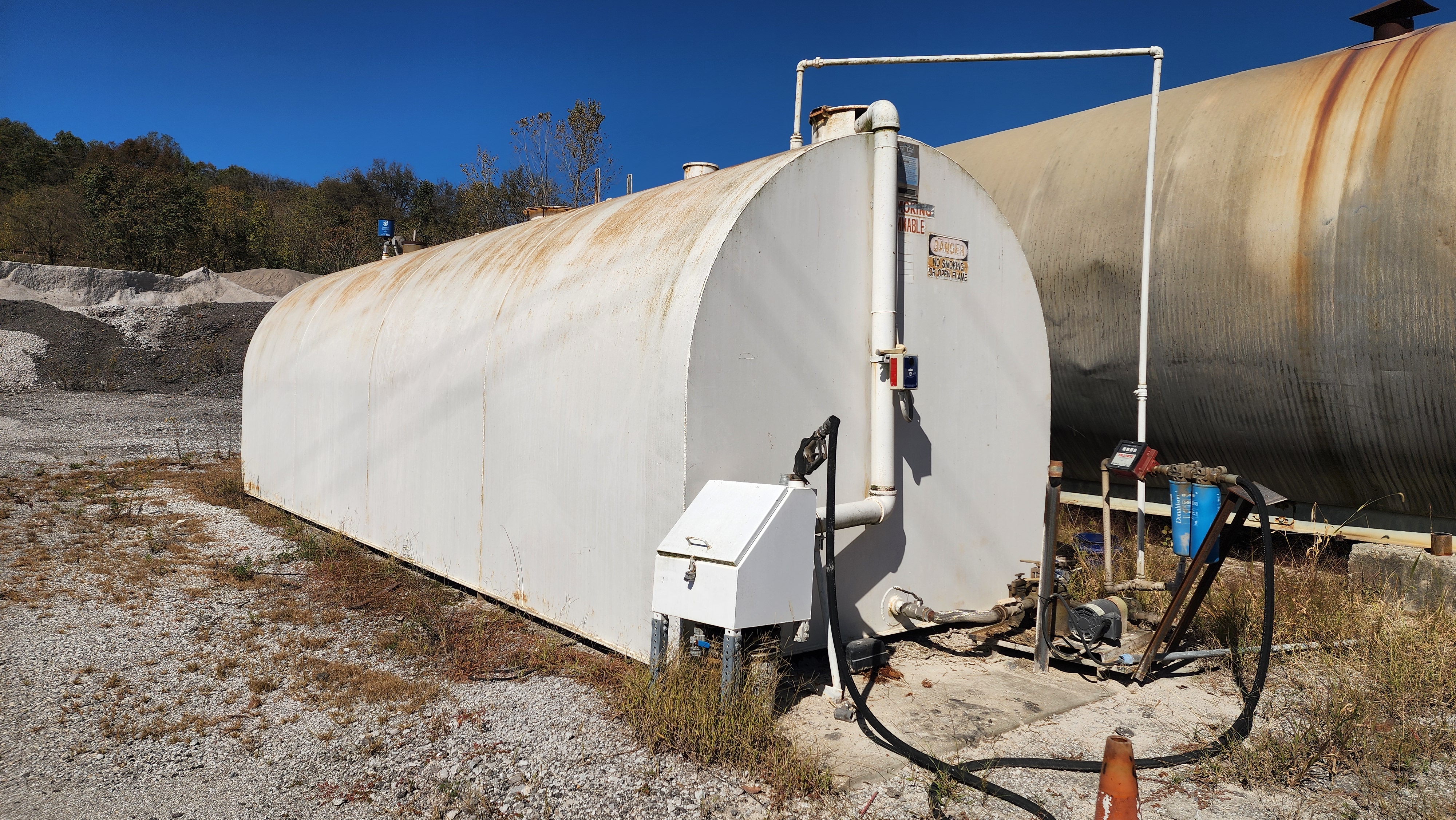

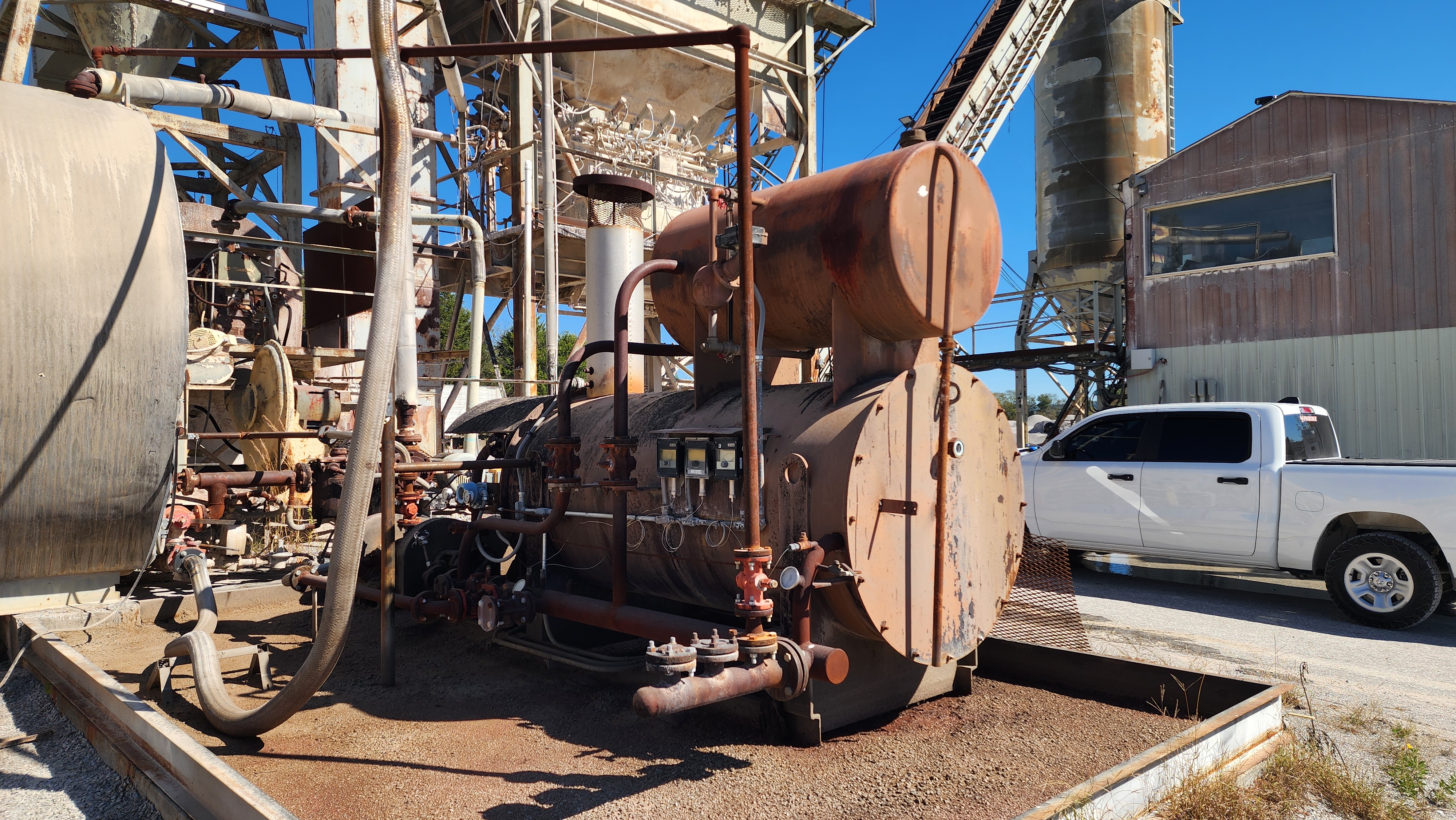

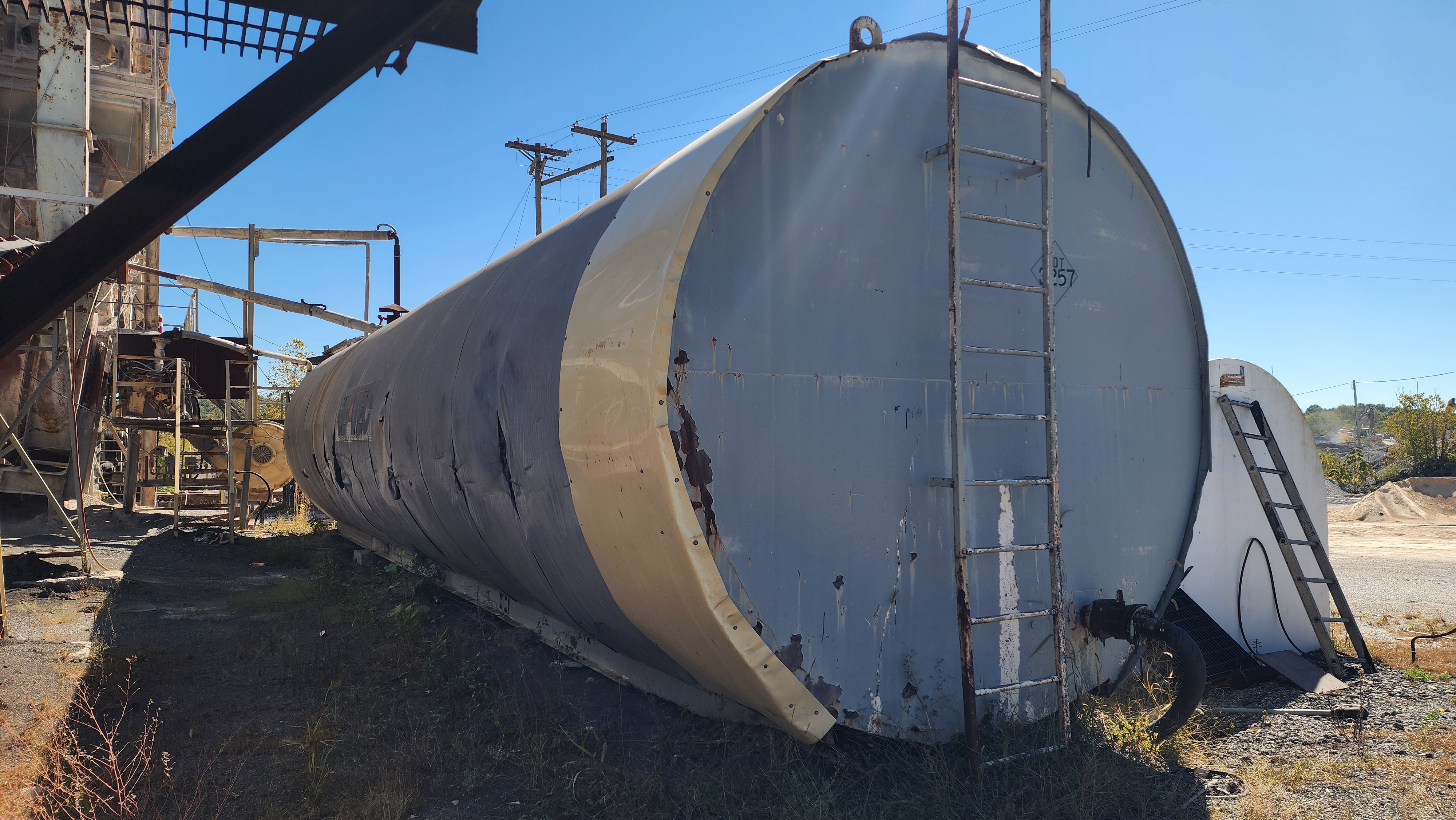

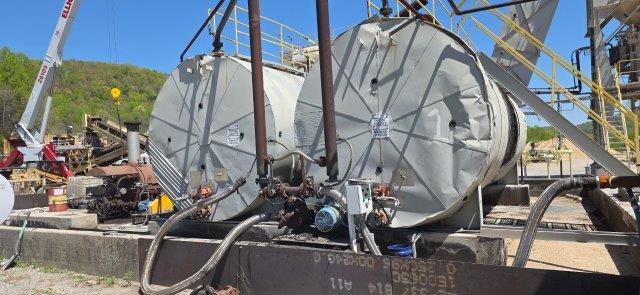

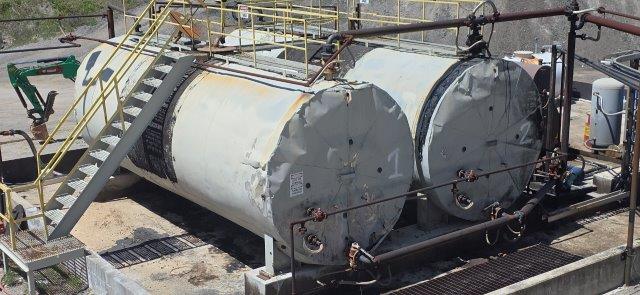

**Liquid AC System:**
**Capacity**: 20,000 Gallons
**Number of Tanks:** 2
**Portability**: Stationary, Skid Mounted
**Compartments**: Single
**Heating Source**: Coiled (No Heater Included)
**Agitation**: No
**Orientation:** Horizontal
**Plumbing**: Included
**Pump Included**: Yes
**Pump Type:** Plant Pump and Unloading Pump
**Pump HP**: 20 hp (each pump)
**Standing/Connected/Disassembled**: Still Connected
* If purchase separately $11,700.00 Each
**Fuel System:**
None included.
**Silo System**:
None included.

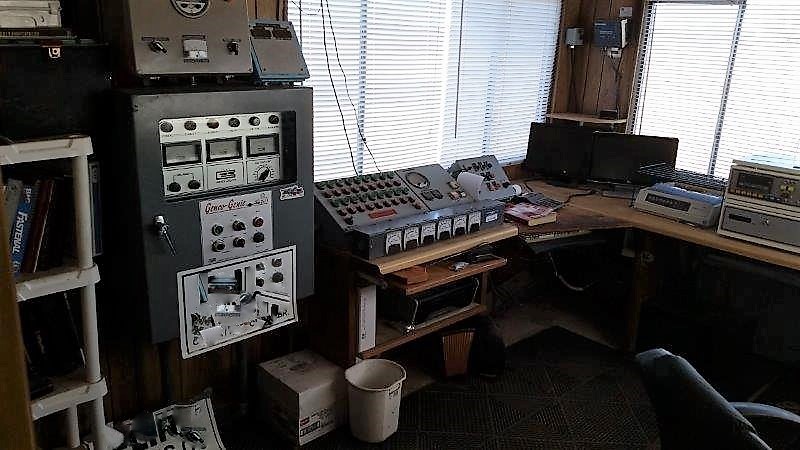

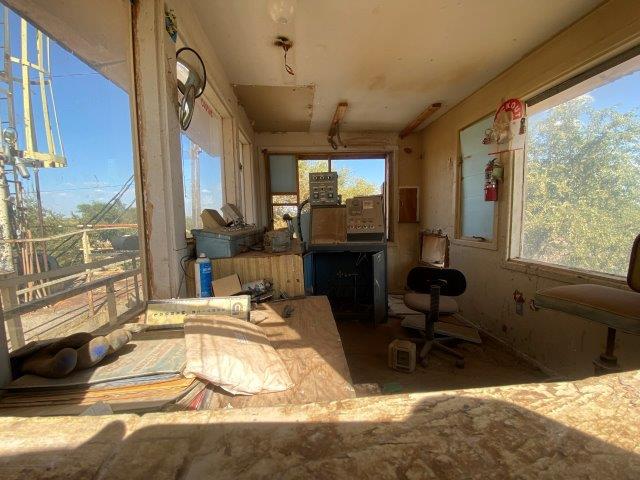

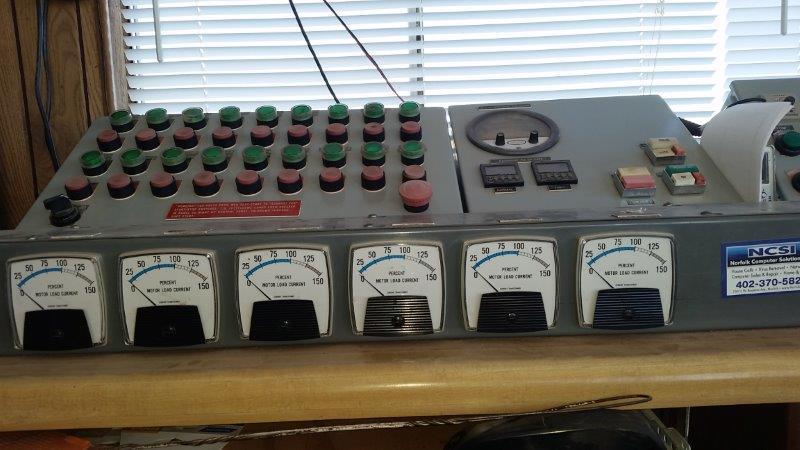

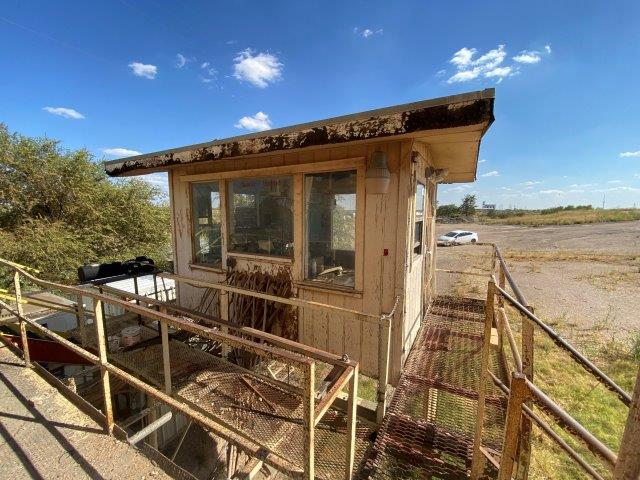

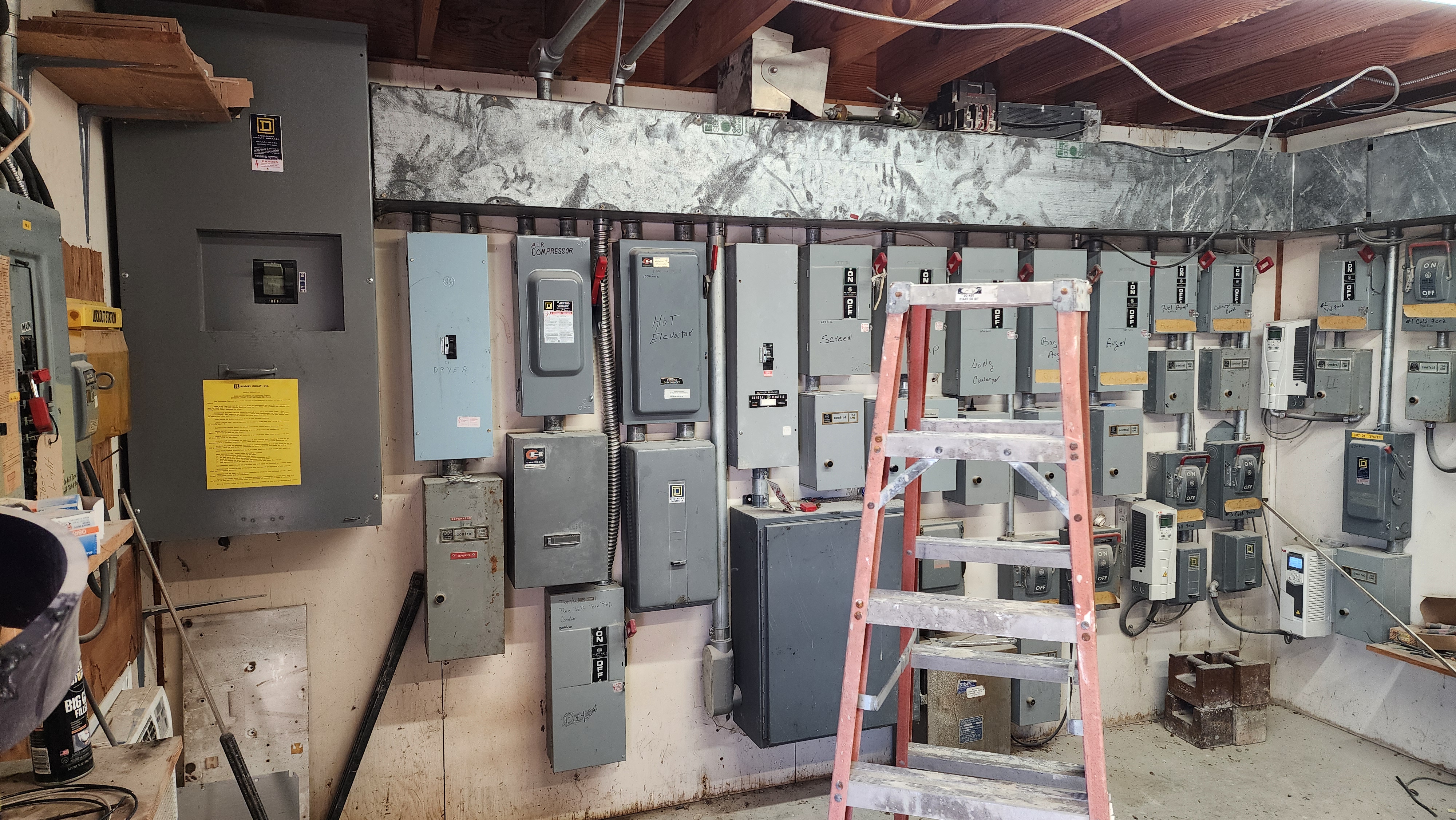

**Control House and Controls**:
**No Control House Included**
**Batch Plant Controls**: Newer Astec batch plant blending controls
**Burner Controls**: Astec BC 3300 burner controls
**Motor Control Center:** NOT included
* If purchased separately $7,800.00 (Controls Only)

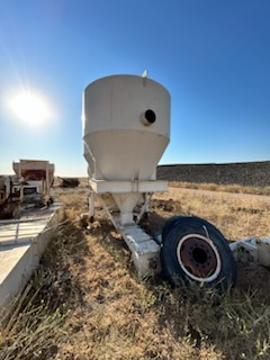

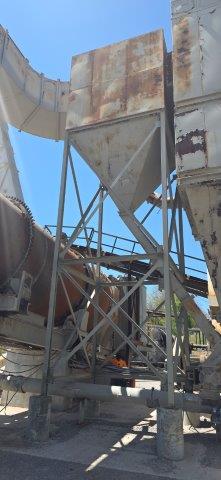

**Dust Silo**
**Capacity**: Approx 300BBL
**Portability**: Stationary
**Binvent**: No
**Auger**: Yes
* If purchase separately price TBD
**Miscellaneous**:
Equipment available after next job is completed.
Original partial parts book for the plant included, along with books for the Astec controls.
